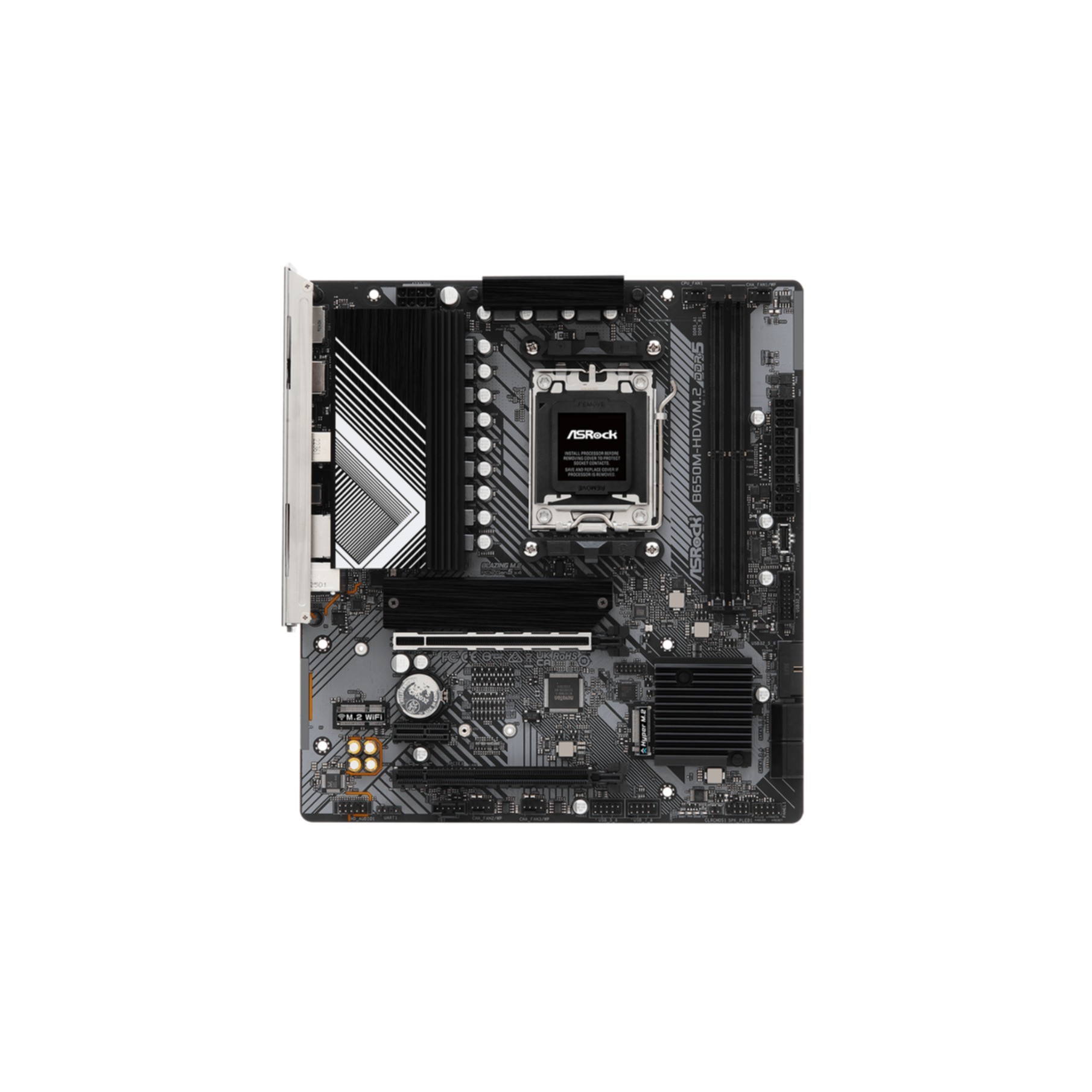

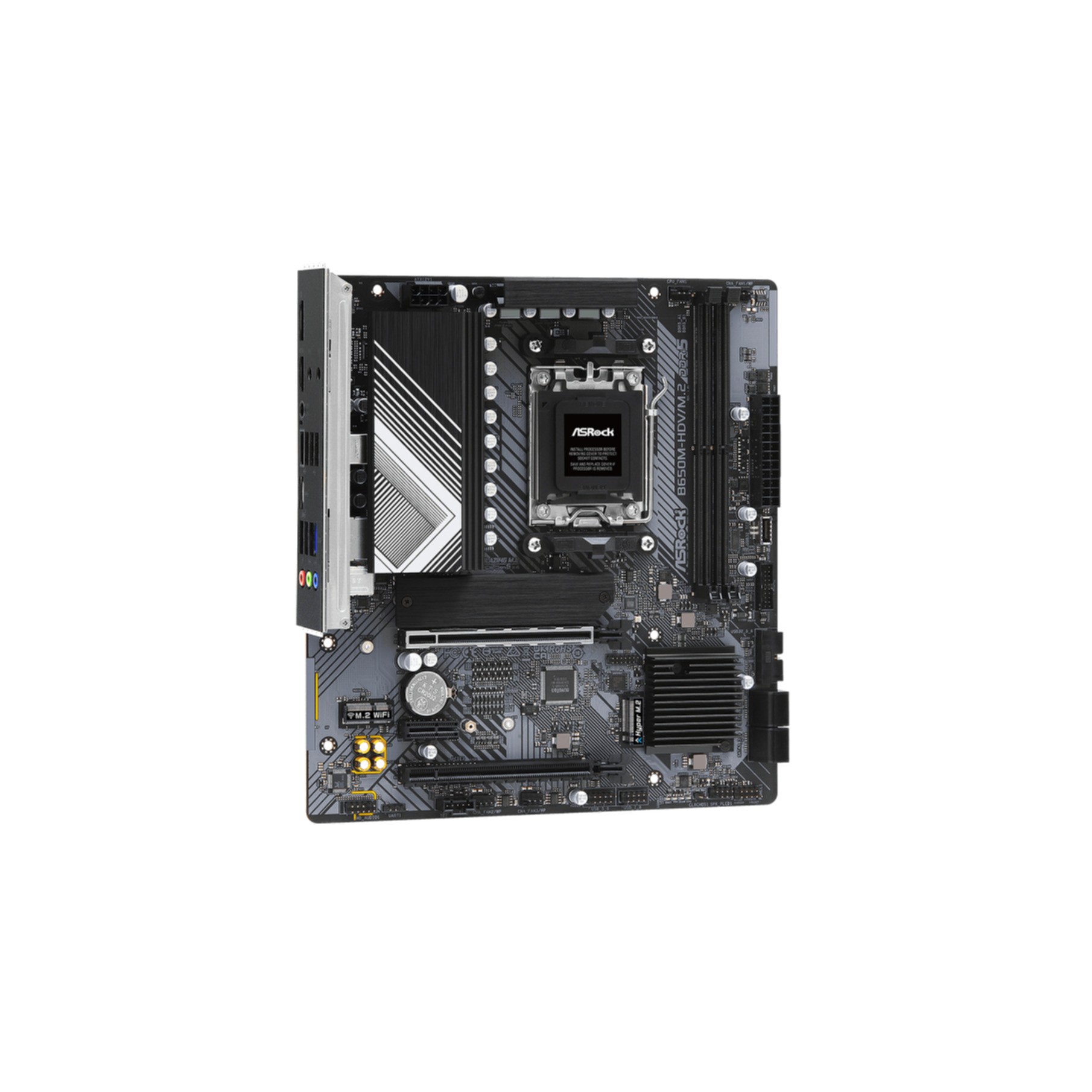

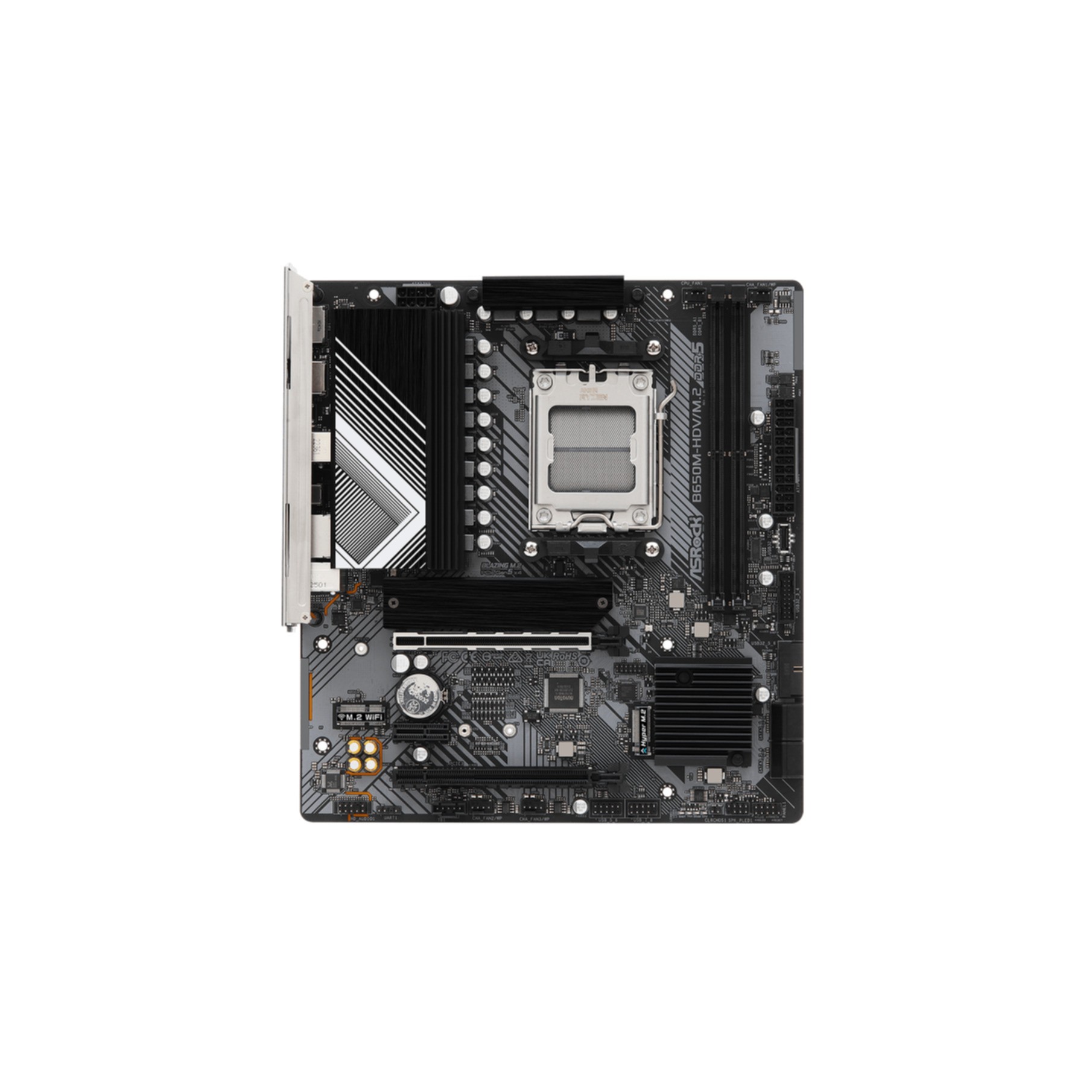

ASROCK B650M-HDV/M.2 (AM5) (D)
- Order number: 86258
- Available from: 25.04.2025
- Supplier number: 90-MXBLA0-A0UAYZ
- EAN: 4710483942693
- Socket: Socket AM5
- Internal memory max.: 64 GB
- Chipset: AMD B650
- Form factor: micro ATX
Eigenschaften | |
unterstützte Prozessormodelle | AMD Ryzen™ 7 |
Sockel | Sockel AM5 |
Chipsatz | AMD B650 |
BIOS | EFI AMI, 256 Mbit |
Formfaktor | micro ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 64 GB |
Memory slots | 2 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR5-SDRAM |
RAM Takt | 2133;2400;2667;2933;3200 |
Speicher Kanäle | Zweikanalig |
Speichertyp | ECC;Non-ECC;Un-buffered |
Controller in CPU | ja |

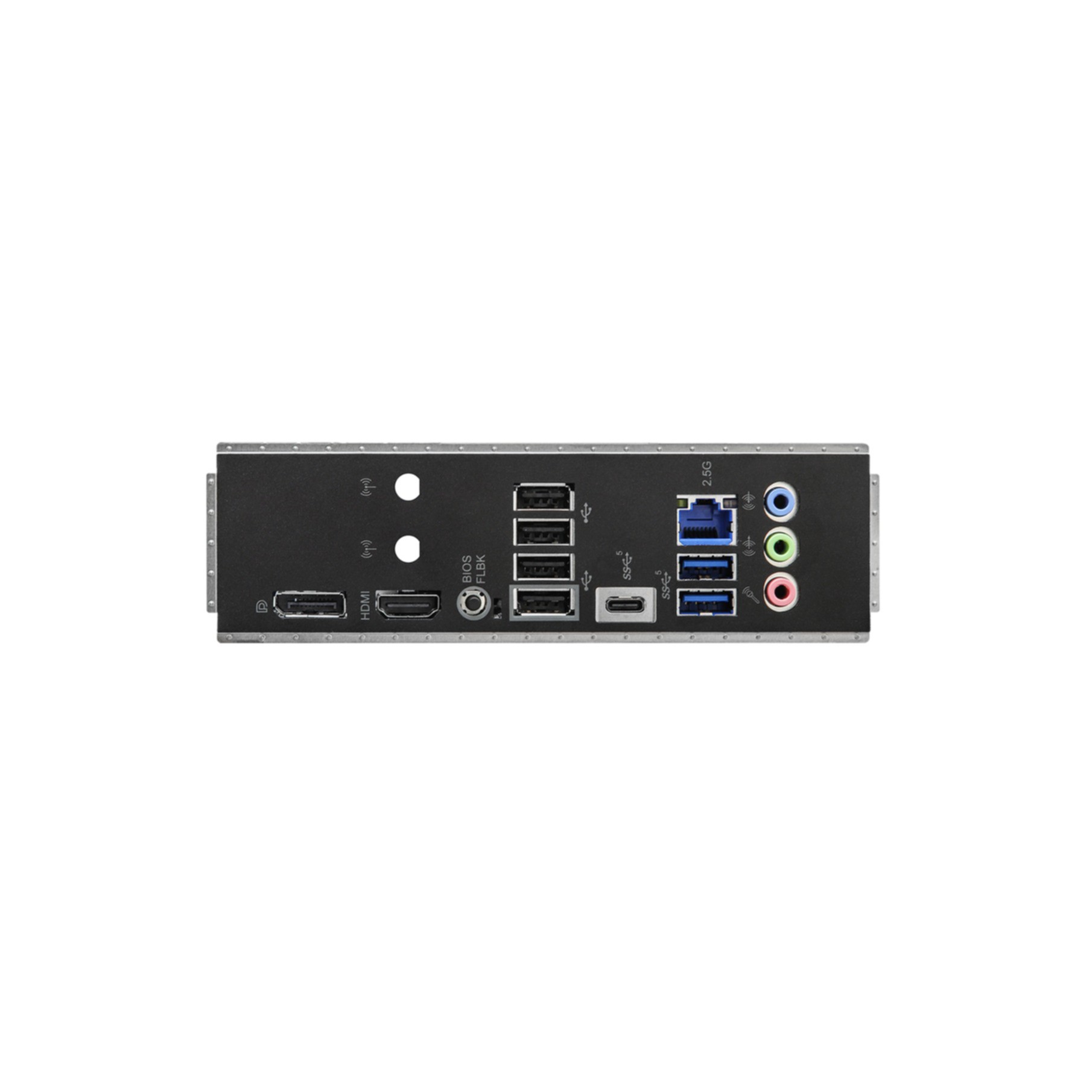

Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 1 |
USB 3.0 | 2 |
USB 2.0 | 4 |
USB C | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 2 |
Anschlüsse intern | |
PCIe 4.0 | 1 |
PCIe 3.0 | 2xPCIe x1 |
Mainbord Strom | 24pin |
CPU Strom | 8+4pin |
SATA 3 | 4 |
M.2 | 1 |
M.2 Länge max. | 80mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 2 |
USB-Header USB C | 1 |
Lüfter 4-polig PWM | 3 |
Sound | |
Sound-Chip | 7.1 Kanäle, Realtek ALC897 |
Sonstiges | |
LAN | Realtek RTL8125-BG |
RAID SATA | 0, 1, 10 |
RAID M.2 | 0;1;10 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz;silber |
Gewicht (g) | 1000 |
Breite (cm) | 24.40 |
Tiefe (cm) | 24.40 |
Internal graphic | yes |
verfügbare Slots | 3 |
