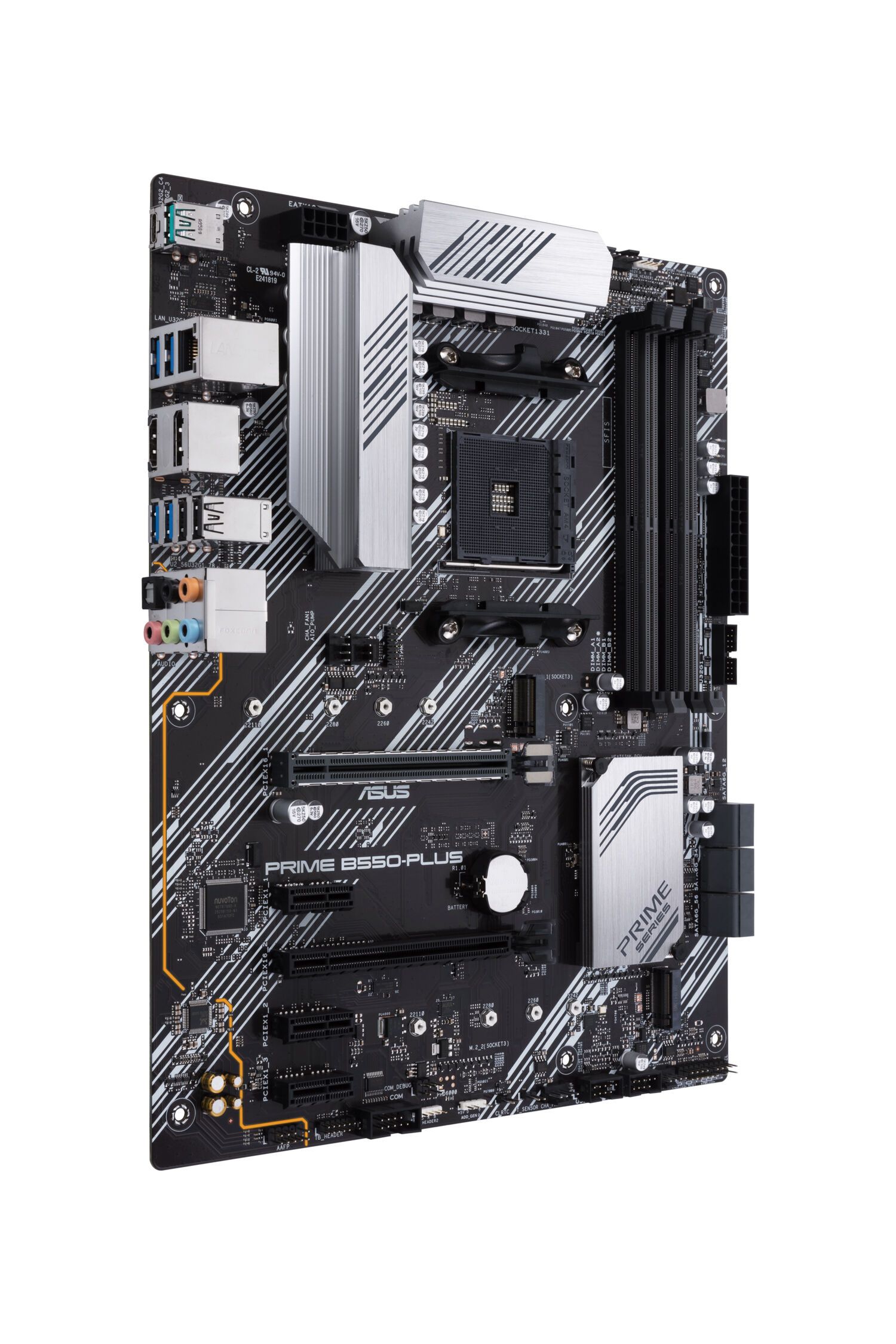

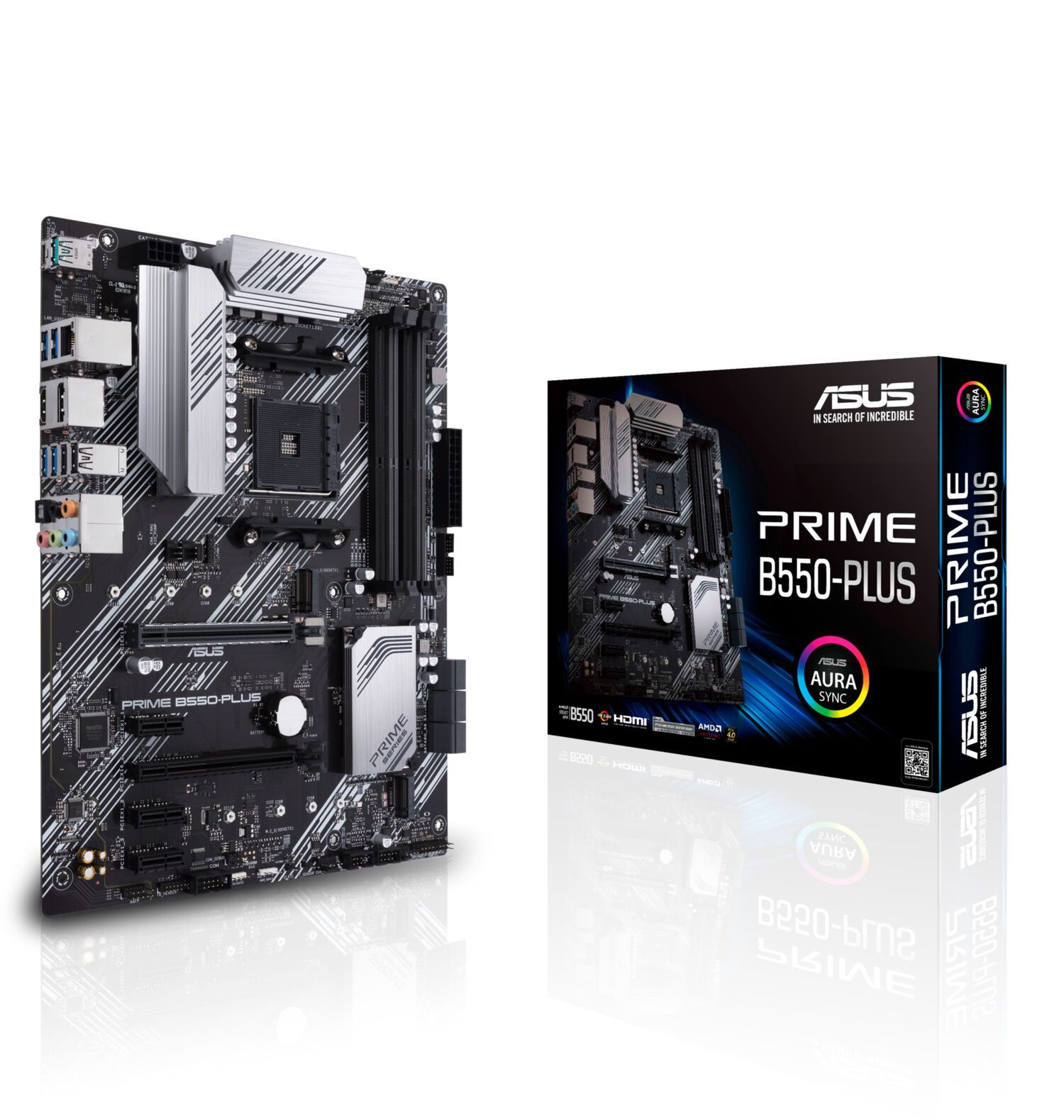

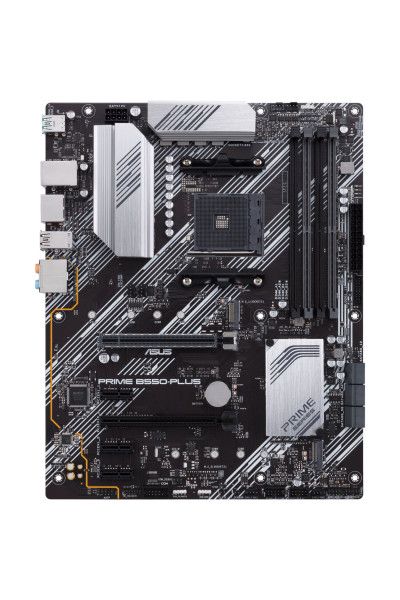

ASUS PRIME B550-PLUS (AM4) (D)
- Order number: 55313
- Supplier number: 90MB14U0-M0EAY0
- EAN: 4718017782340
- Socket: Socket AM4
- Internal memory max.: 128 GB
- Chipset: AMD B550
- Form factor: ATX
Eigenschaften | |
unterstützte Prozessormodelle | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Sockel | Socket AM4 |
Chipsatz | AMD B550 |
BIOS | 256 Mbit |
Formfaktor | ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 128 GB |
Memory slots | 4 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR4-SDRAM |
RAM Takt | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
Speicher Kanäle | Dual |
Speichertyp | unbuffered;non-ECC |
Controller in CPU | ja |
Anschlüsse extern | |
LAN (RJ45) | 1x 1 Gbit |
USB 3.1 | 2 |
USB 3.0 | 4 |
USB 2.0 | 2 |
USB C | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 1xPCIe x16 |
PCIe 3.0 | 1xPCIe x16; 3xPCIe x1 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 6 |
M.2 | 2 |
M.2 Länge max. | 80mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 1 |
Lüfter 4-polig PWM | 5 |
Sound | |
Sound-Chip | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
Sonstiges | |
LAN | Realtek RTL8111H |
Multi-GPU | ja |
Multi-GPU Modus | 2-Way CrossFireX |
RAID SATA | 0;1;10 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz;silber |
Gewicht (g) | 1 kg |
Internal graphic | yes |
verfügbare Slots | 2 |
