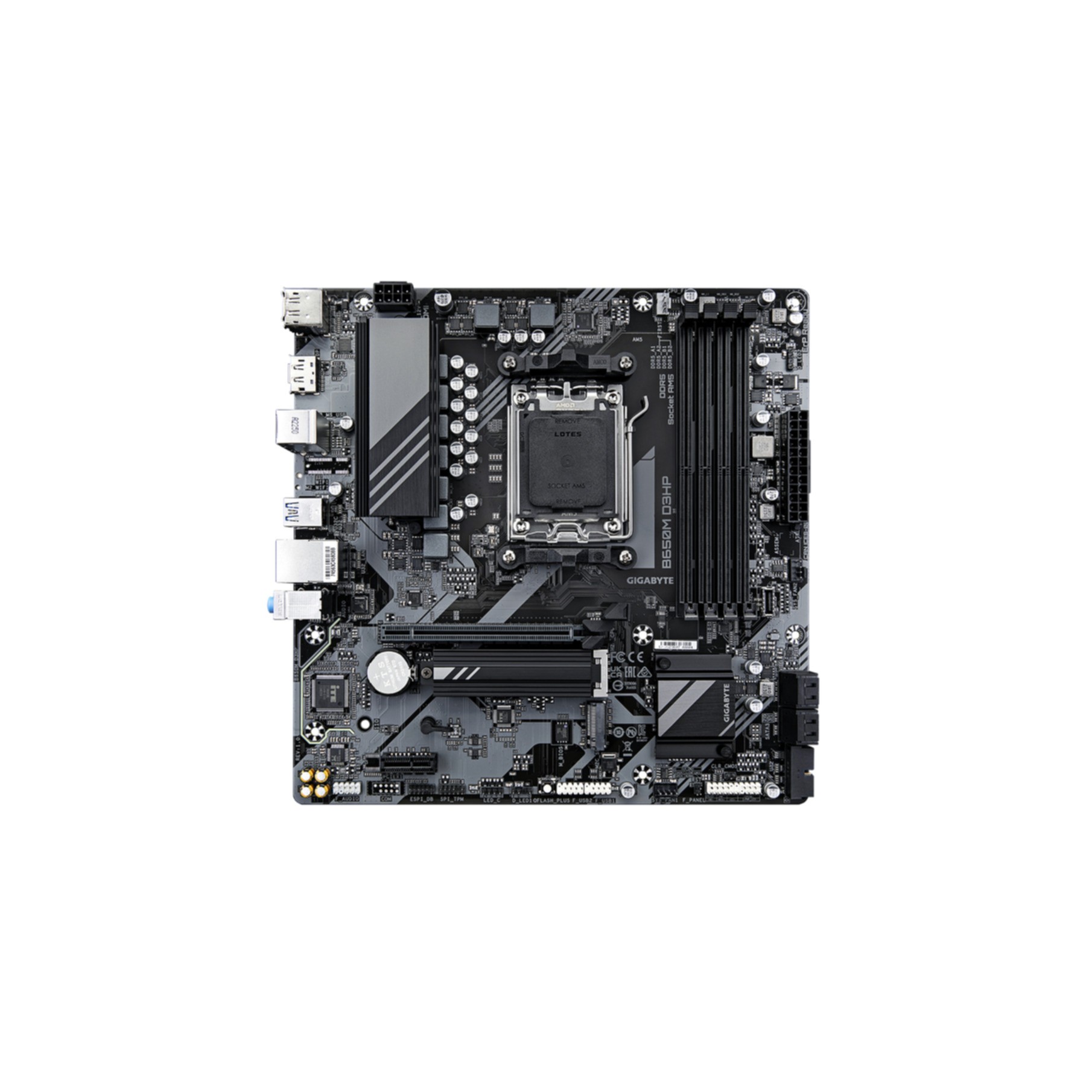

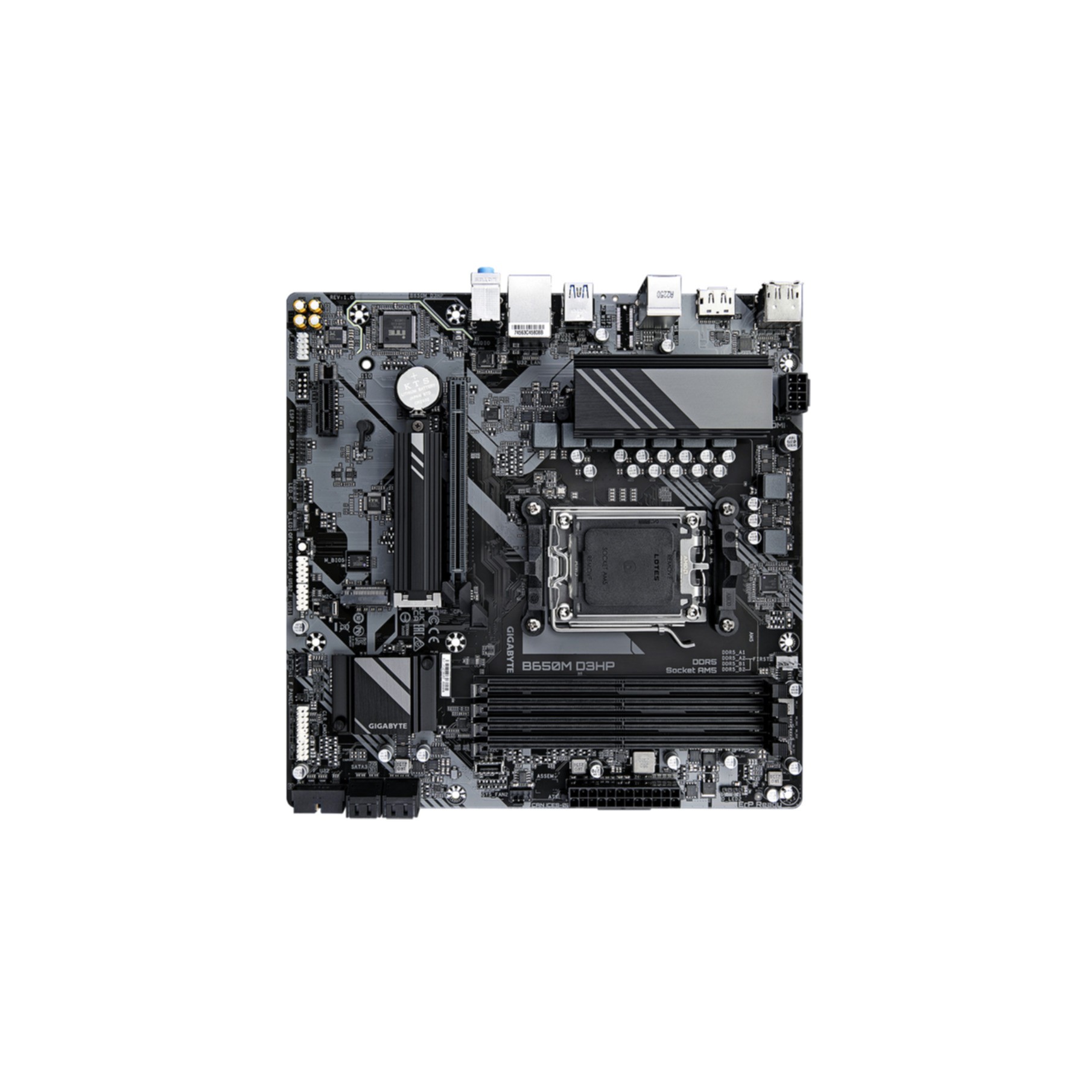

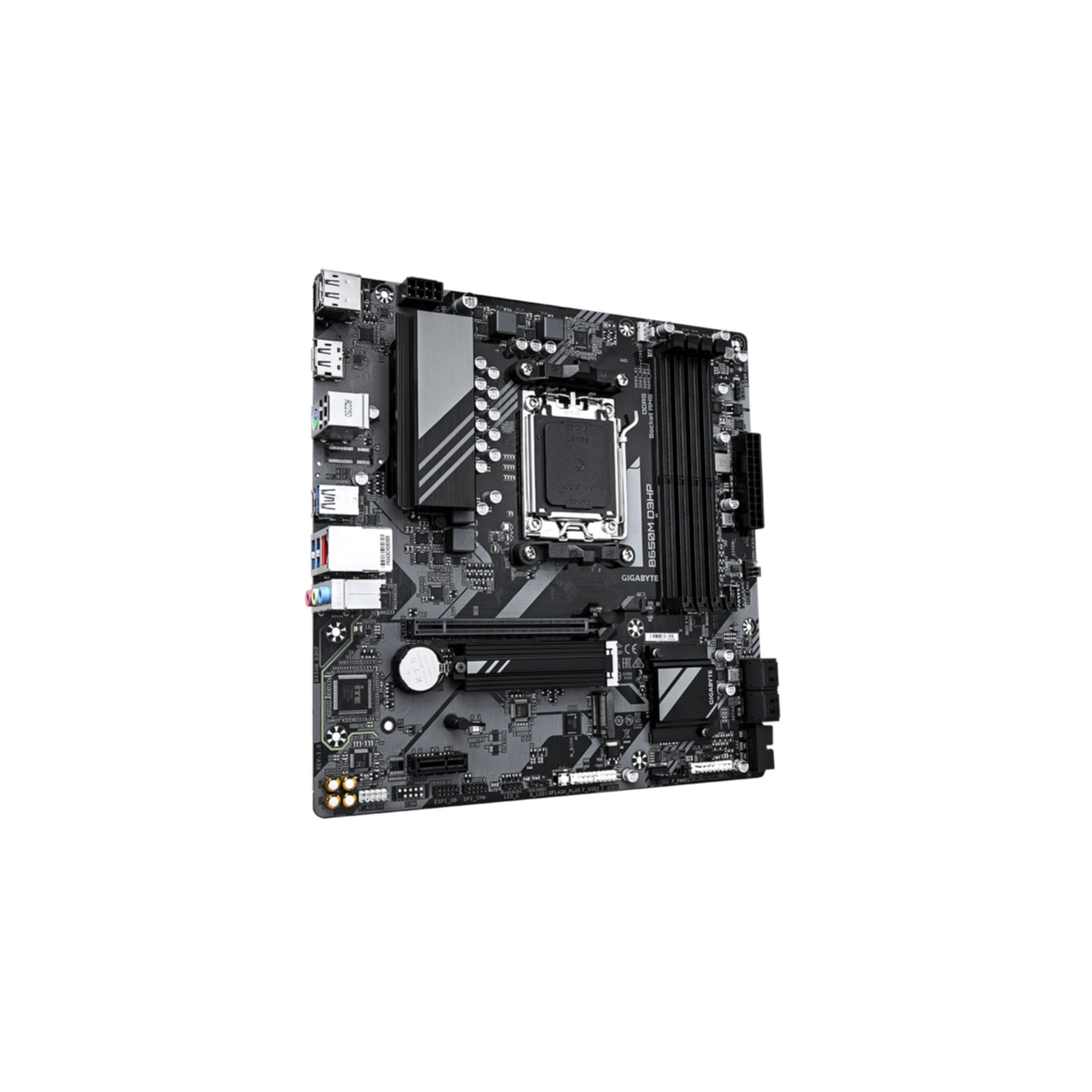

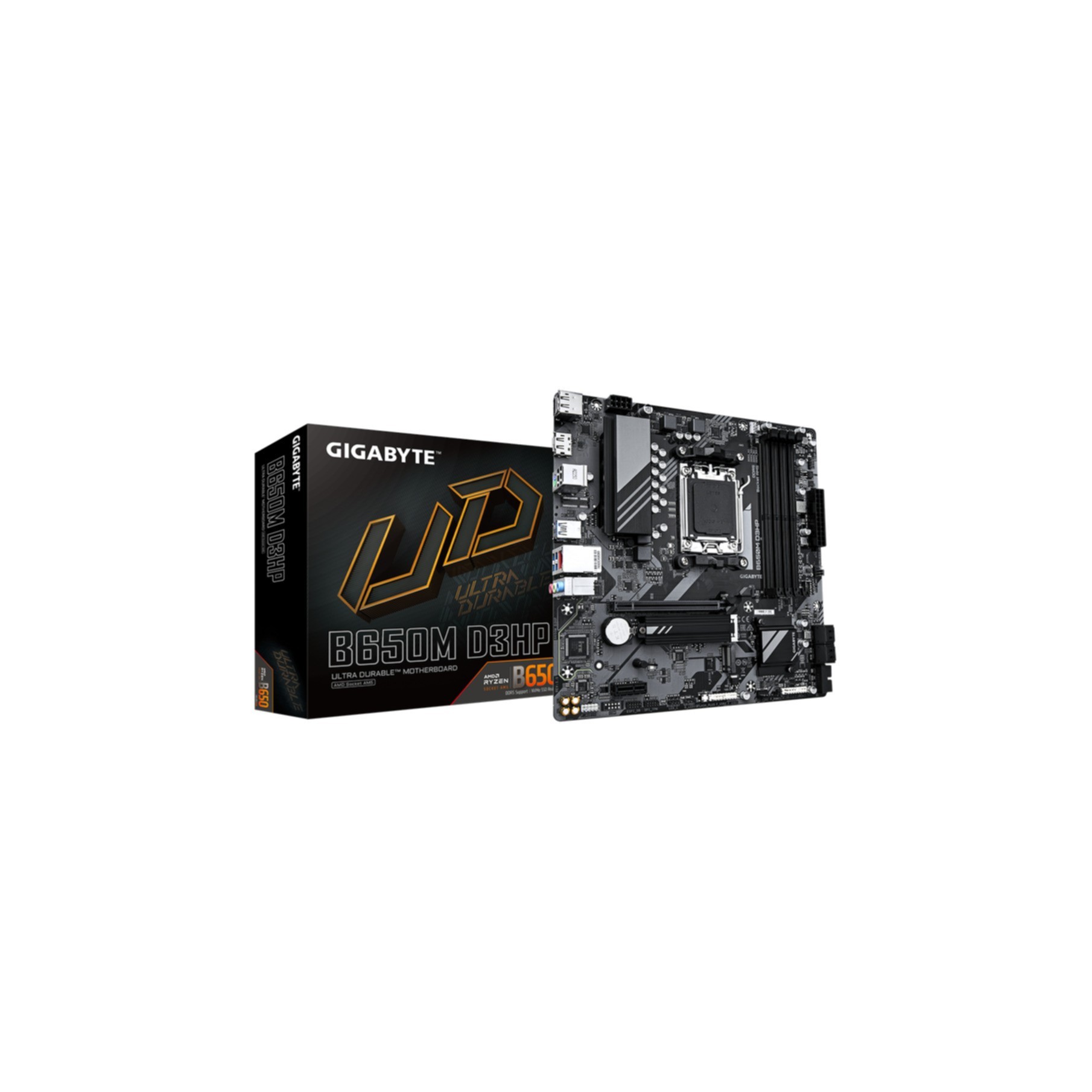

Gigabyte GA-B650M D3HP (AM5) (D)
- Order number: 77001
- Supplier number: B650M D3HP
- EAN: 4719331857851
- Socket: Socket AM5
- Internal memory max.: 256 GB
- Chipset: AMD B650
- Form factor: micro ATX
Eigenschaften | |
unterstützte Prozessormodelle | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
Sockel | Sockel AM5 |
Chipsatz | AMD B650 |
BIOS | 256 Mbit |
Formfaktor | micro ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 256 GB |
Memory slots | 4 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR5-SDRAM |
RAM Takt | 7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | ECC unbuffered;non-ECC unbuffered |
Controller in CPU | ja |

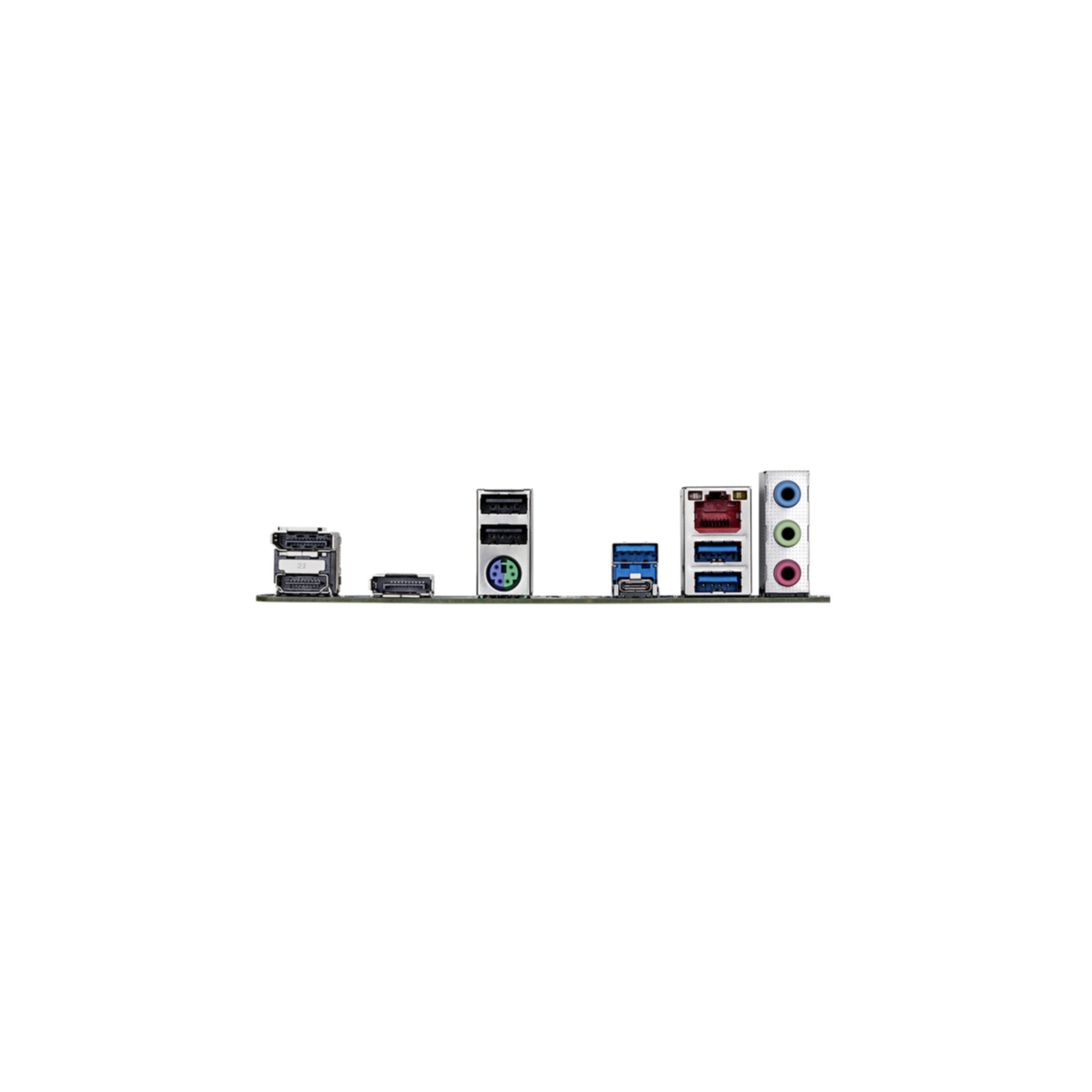

Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 0 |
USB 3.0 | 3 |
USB 2.0 | 2 |
VGA | 0 |
HDMI | 1 |
DisplayPort | 2 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 1xPCIe x16 |
PCIe 3.0 | 1 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 2 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 1 |
USB-Header USB C | 1 |
Lüfter 4-polig PWM | 2 |
Sound | |
Sound-Chip | Realtek ALC897 |
Sonstiges | |
LAN | Realtek RTL8125 |
Multi-GPU Modus | Nicht unterstützt |
RAID SATA | 0, 1, 10 |
Beleuchtungsfarbe | RGB LED |
Farbe | schwarz |
Gewicht (g) | 1850 |
Breite (cm) | 30.50 |
Tiefe (cm) | 24.40 |
Internal graphic | yes |
verfügbare Slots | 4 |
