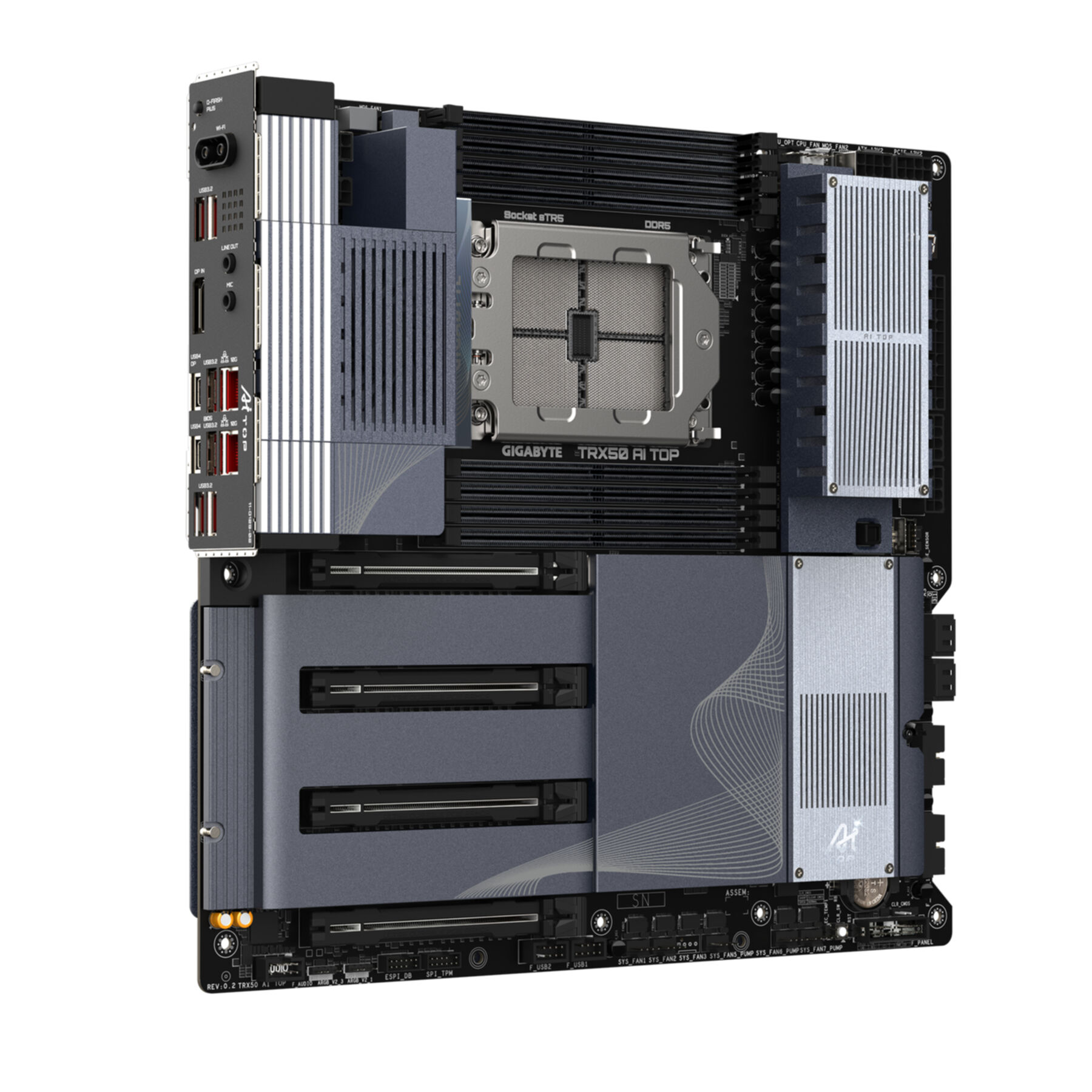

Gigabyte TRX50 AI TOP (sTR5) (D)
- Order number: 84529
- Supplier number: TRX50 AI TOP
- EAN: 4719331863845
- Socket: Socket AM4
- Internal memory max.: 2 TB
- Chipset: AMD TRX50
- Form factor: Extended ATX
Eigenschaften | |
unterstützte Prozessormodelle | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
Sockel | Socket sTR5 |
Chipsatz | AMD TRX50 |
BIOS | UEFI AMI |
Formfaktor | Erweitertes ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 2 TB |
Memory slots | 8 |
Speicher je Speicherplatz | 32 GB |
Storage type | DDR5-SDRAM |
RAM Takt | 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
Speicher Kanäle | Vierfach-Kanal |
Speichertyp | non-ECC un-buffered;ECC unbuffered |
Controller in CPU | ja |

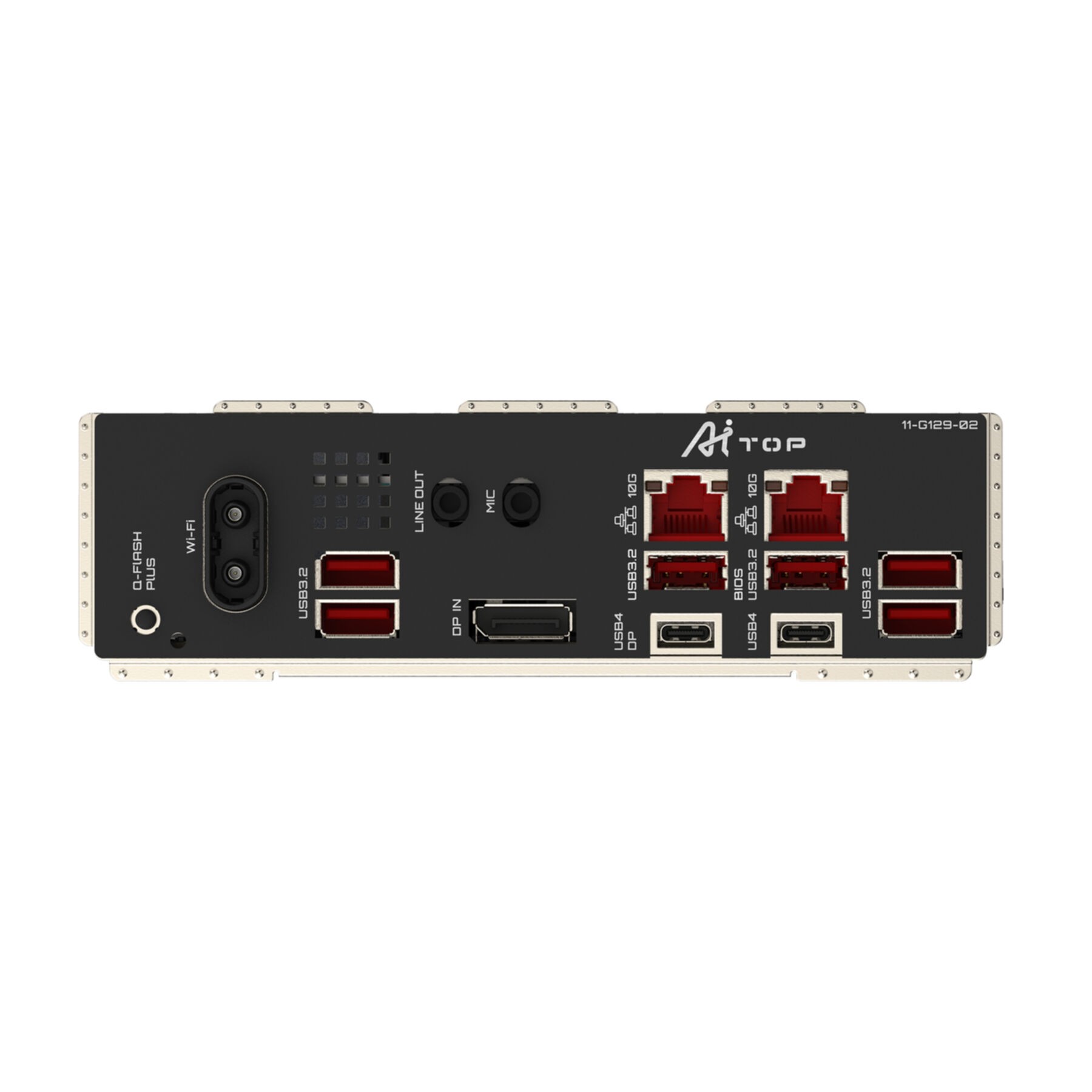

Anschlüsse extern | |
LAN (RJ45) | 10 Gigabit Ethernet |
USB 3.1 | 6 |
USB 3.0 | 0 |
USB 2.0 | 0 |
USB C | 1 |
VGA | 0 |
HDMI | 0 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 2x PCIe x16; 2x PCIe x16 (x8) |
Mainbord Strom | 24pin |
CPU Strom | 8+8pin |
SATA 3 | 4 |
M.2 | 4 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 1 |
USB-Header USB C | 0 |
Lüfter 4-polig PWM | 10 |
Sound | |
Sound-Chip | Realtek ALC4080 |
Sonstiges | |
LAN | 2x GbE LAN |
Multi-GPU | ja |
Multi-GPU Modus | SLI;2-Way-SLI;3-Way-SLI;Quad-SLI;CrossFireX;2-Way-CrossFireX;3-Way-CrossFireX;Quad-CrossFireX |
RAID SATA | 0, 1, 10 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz |
Gewicht (g) | 2618 |
Breite (cm) | 30.50 |
Tiefe (cm) | 26.90 |
Verpackungsinhalt | Bedienungsanleitung;Treiber CD;I/O Blende |
Internal graphic | no |
verfügbare Slots | 5 |
zusätzliche Informationen | 2x Anschluss für Antenne (2T2R) |
