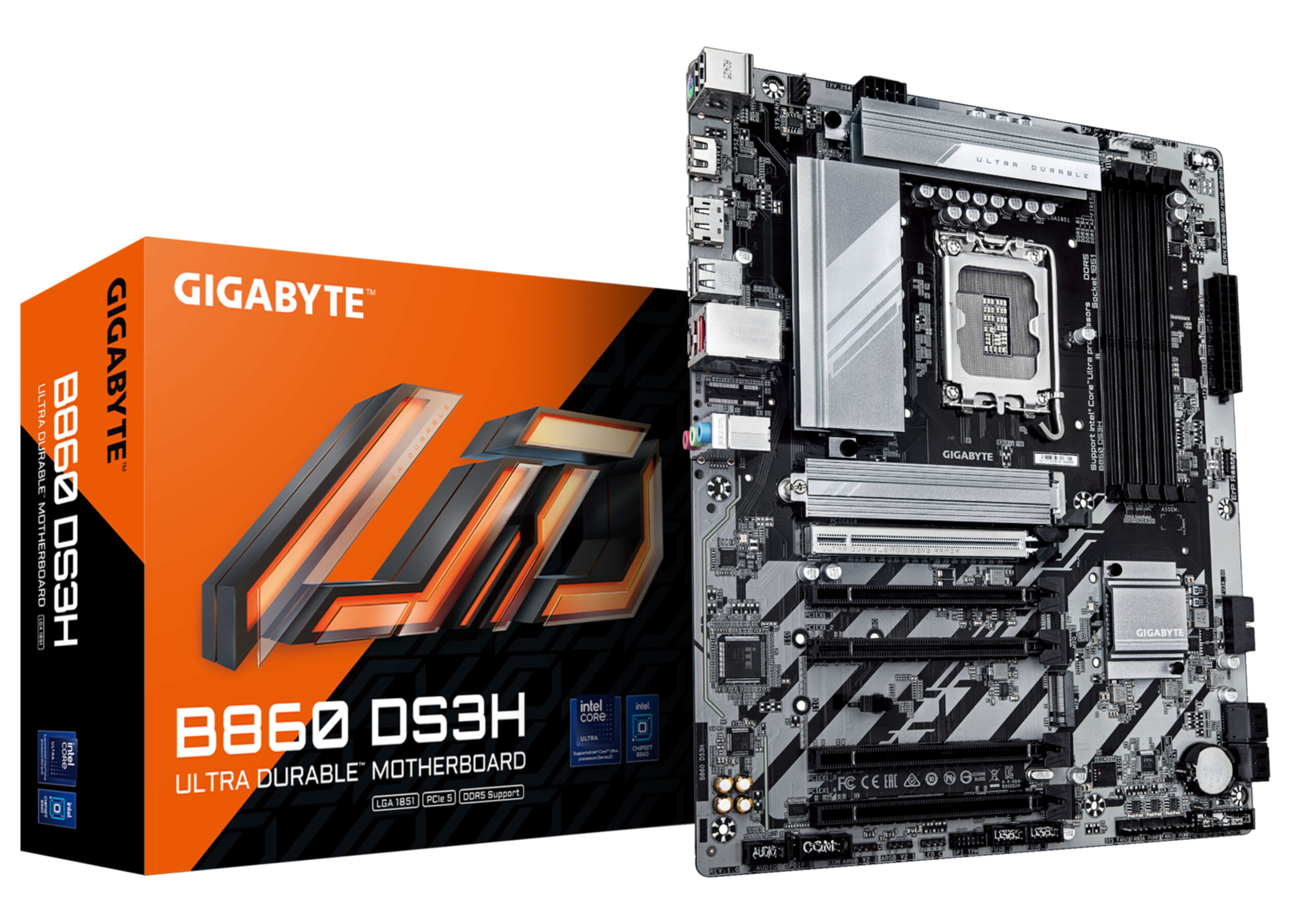

Gigabyte GA-B860 DS3H (1851) (D)
- Order number: 87468
- Available from: 25.04.2025
- Supplier number: B860 DS3H
- EAN: 4719331868178
- Socket: LGA 1851 (Socket V1)
- Internal memory max.: 256 GB
- Chipset: Intel B860
- Form factor: ATX
Eigenschaften | |
unterstützte Prozessormodelle | Intel Core Ultra (Serie 1), Intel Core Ultra (Series 2) |
Sockel | LGA 1851 (Socket V1) |
Chipsatz | Intel B860 |
BIOS | 256 Mbit |
Formfaktor | ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 256 GB |
Memory slots | 4 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR5-SDRAM |
RAM Takt | 5600,6400,9066 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | ECC unbuffered;non-ECC unbuffered |
Controller in CPU | ja |

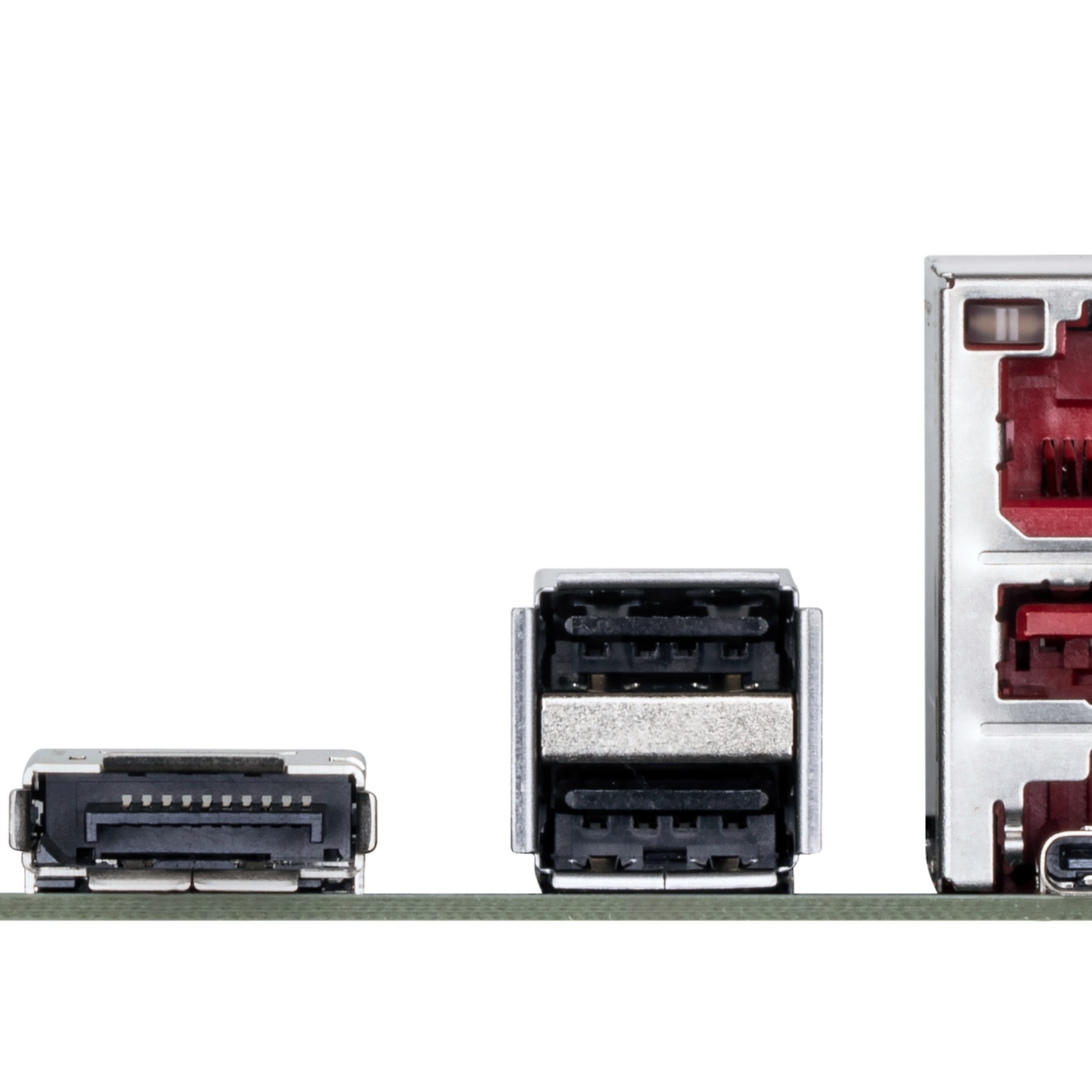

Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 1 |
USB 3.0 | 0 |
USB 2.0 | 4 |
VGA | 0 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 1xPCIe x16 |
PCIe 3.0 | 2x PCIe x16;1x PCIe x1 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 2 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 2 |
USB-Header USB C | 0 |
Lüfter 4-polig PWM | 4 |
Sound | |
Sound-Chip | 7.1 Kanäle |
Sonstiges | |
LAN | Realtek RTL8125 |
Multi-GPU Modus | Nicht unterstützt |
RAID SATA | 0, 1, 5, 10 |
Beleuchtungsfarbe | RGB LED |
Farbe | schwarz |
Gewicht (g) | 2 kg |
Breite (cm) | 30.50 |
Tiefe (cm) | 24.40 |
Internal graphic | yes |
verfügbare Slots | 4 |
