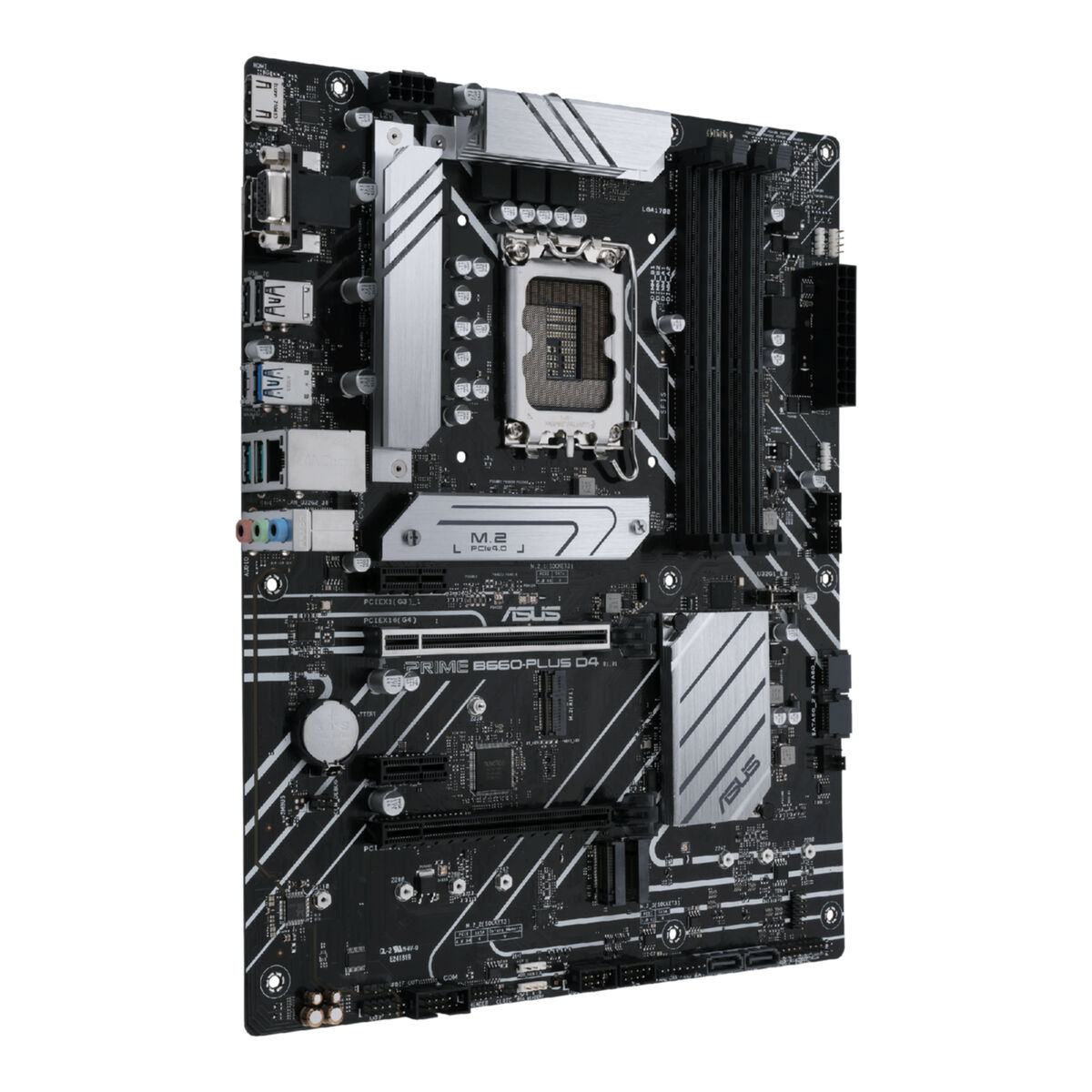

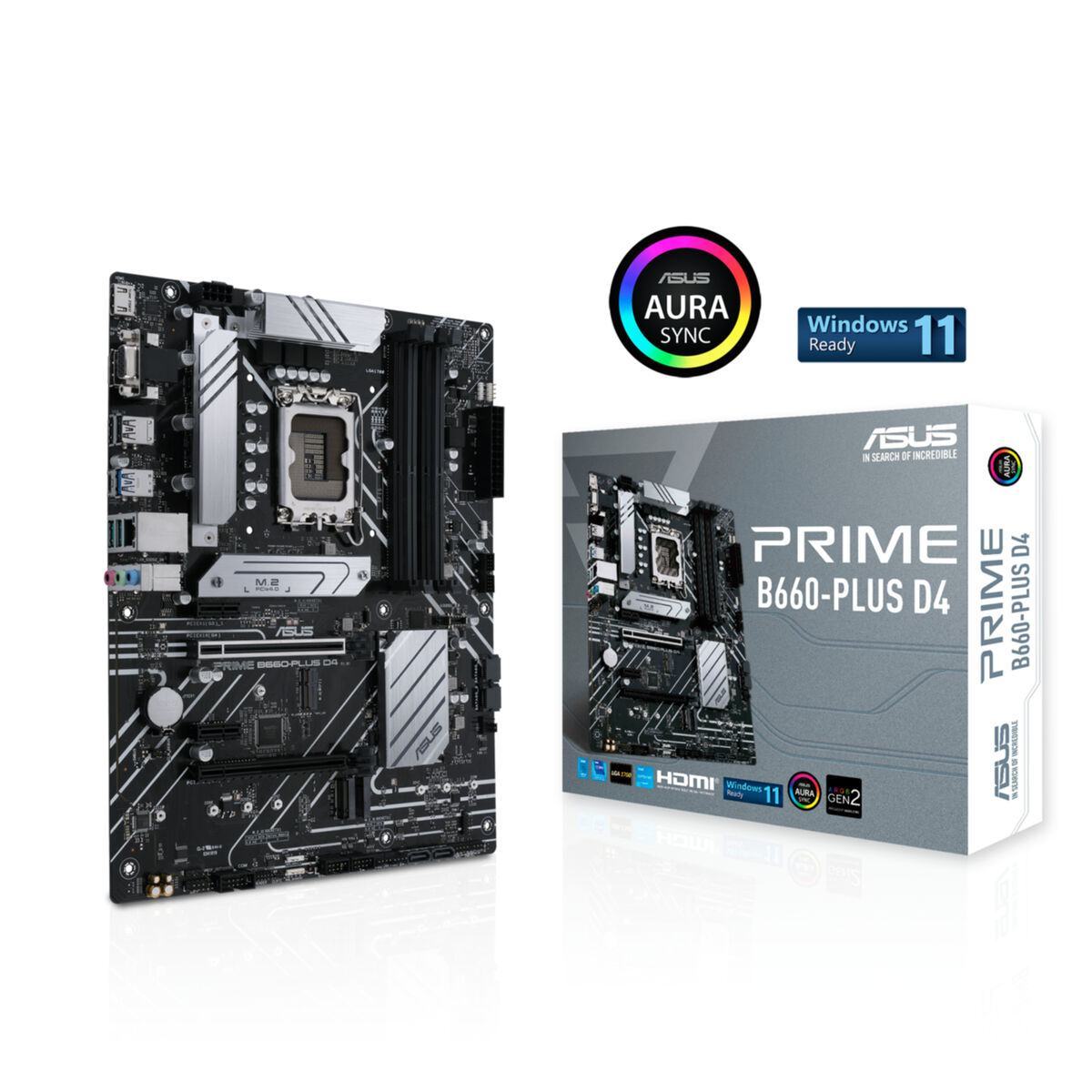

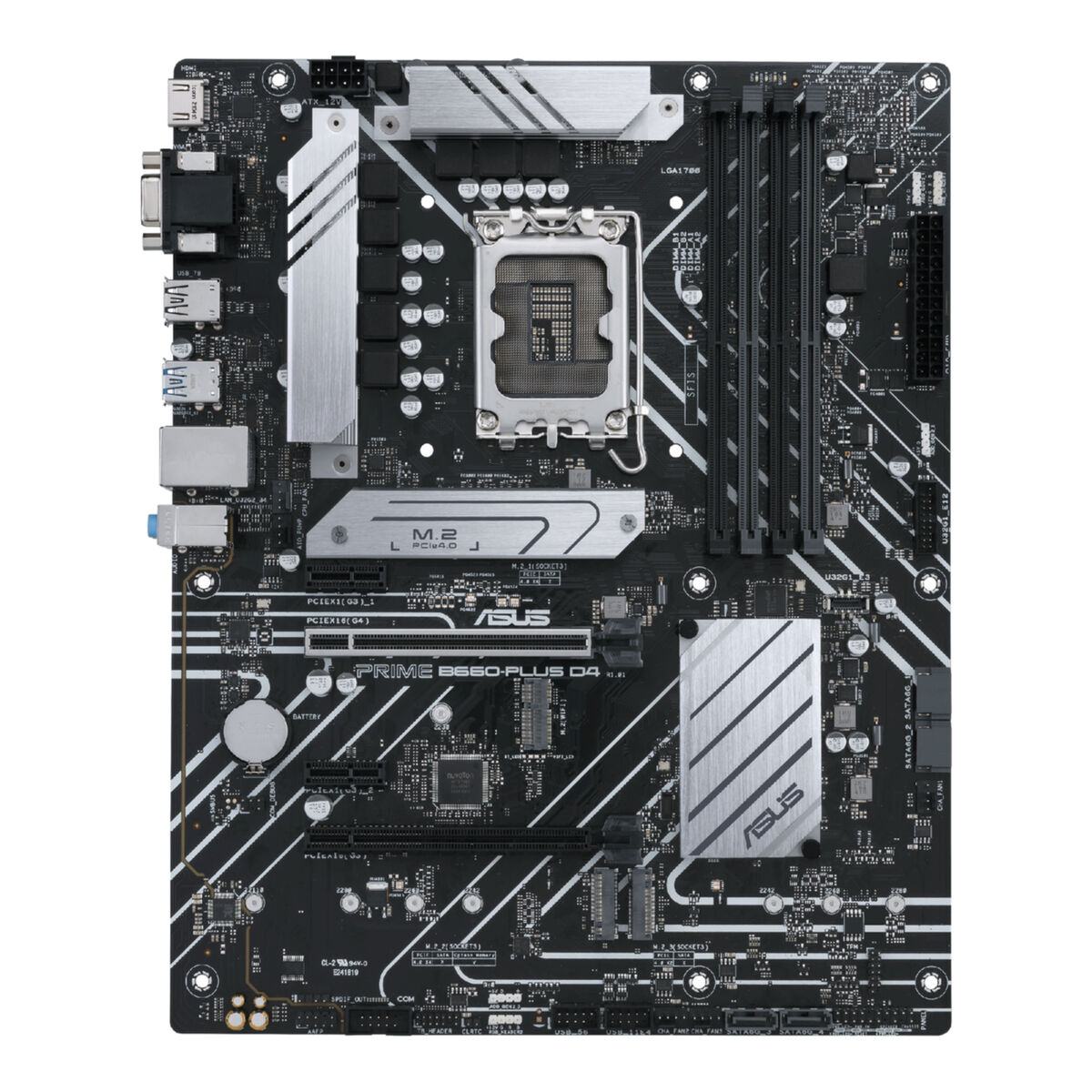

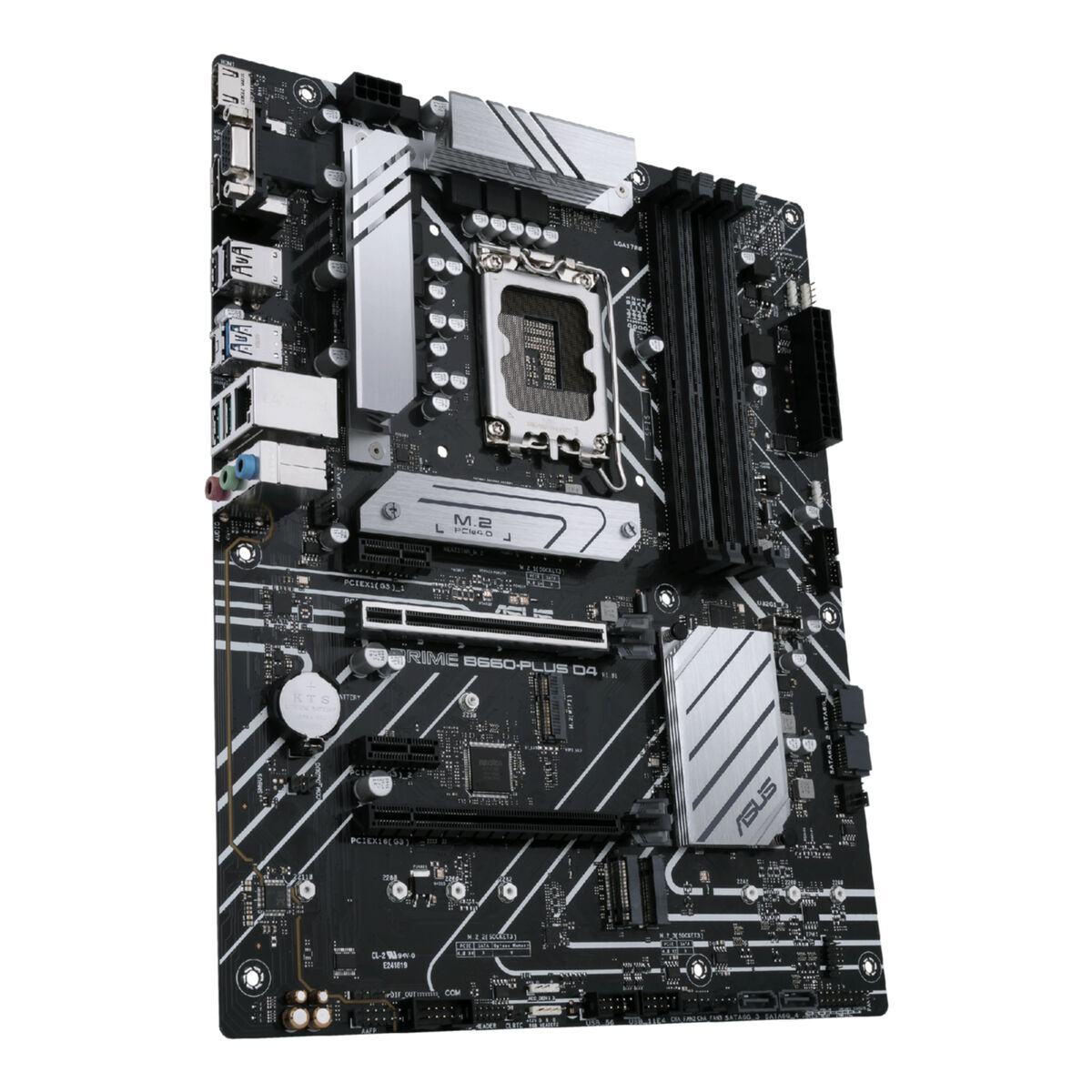

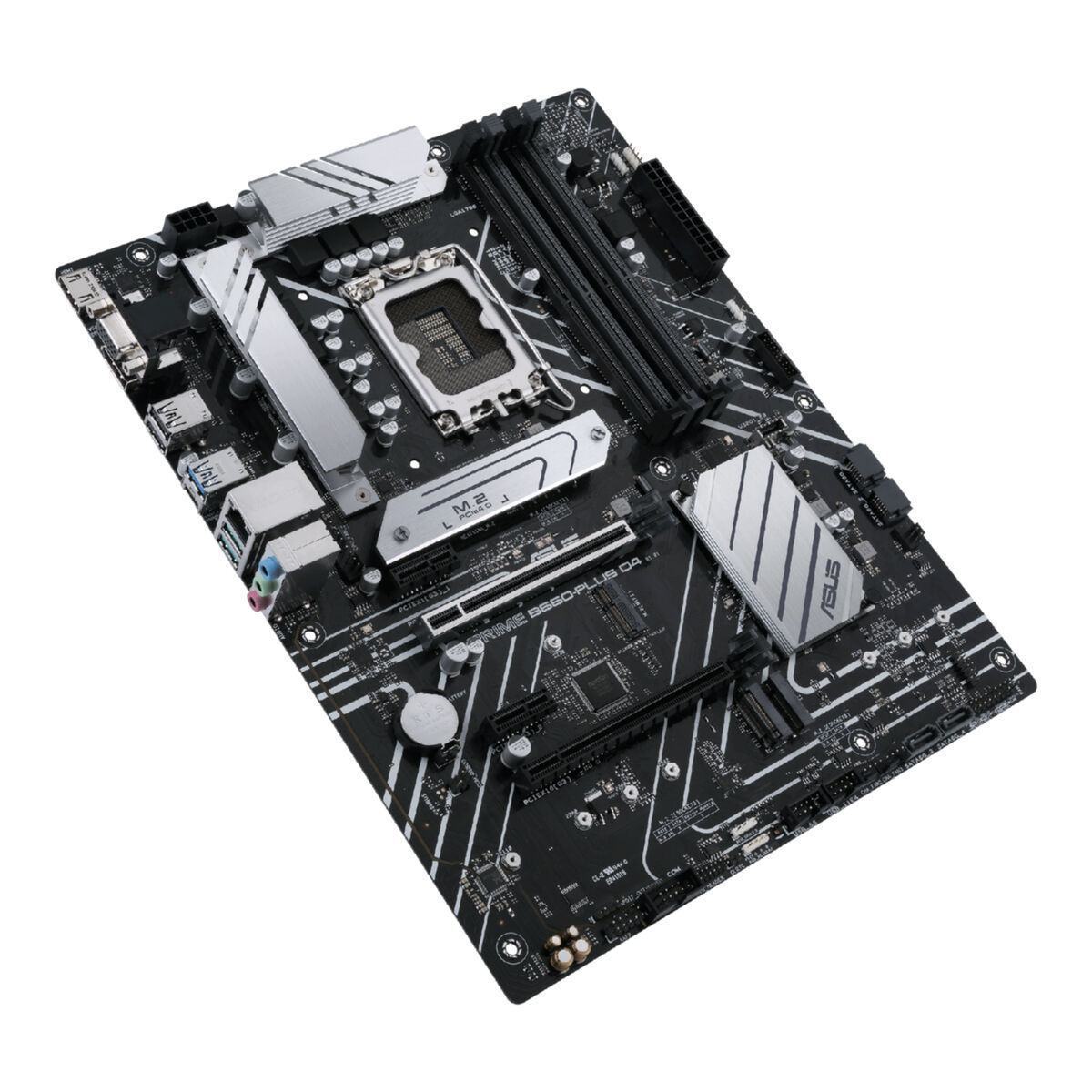

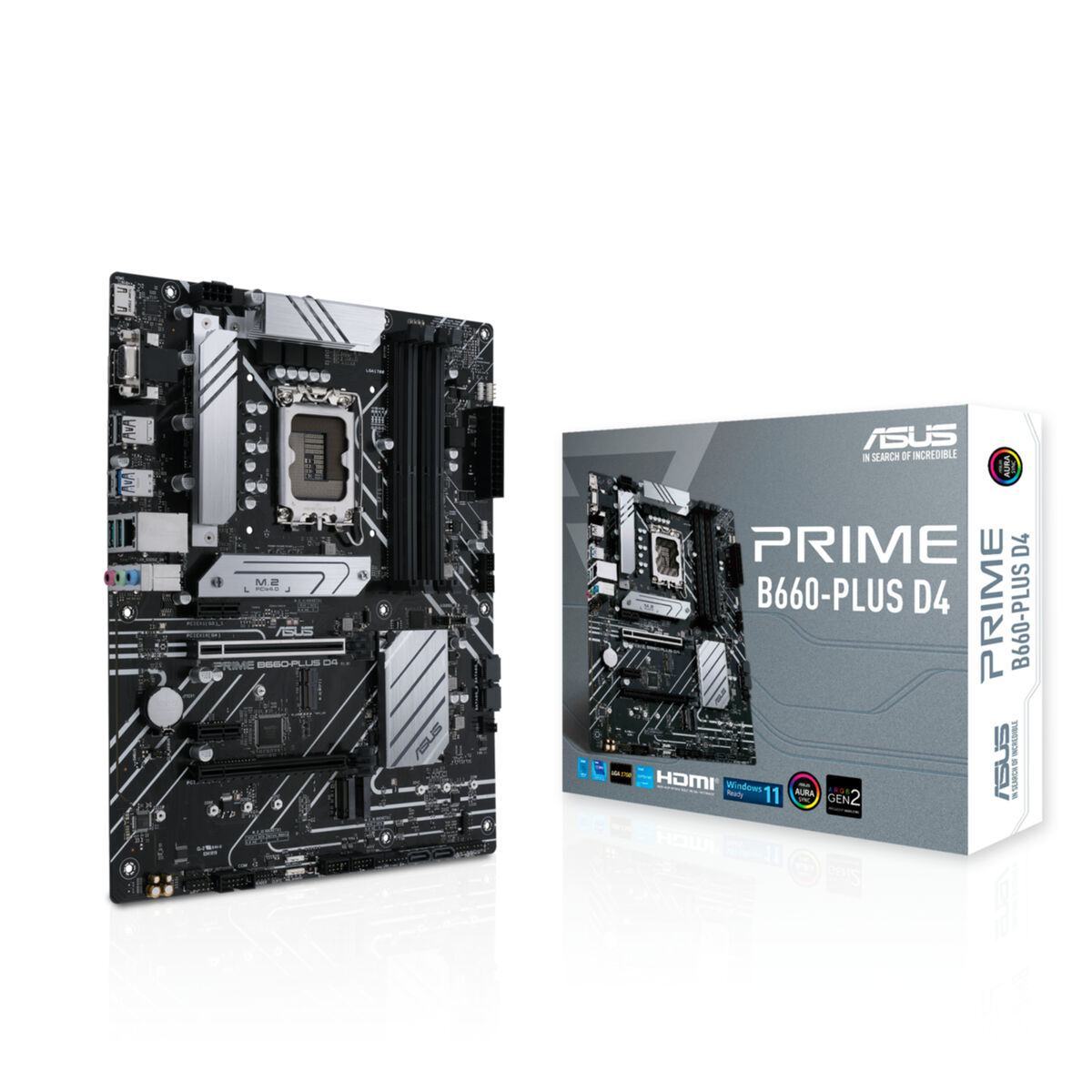

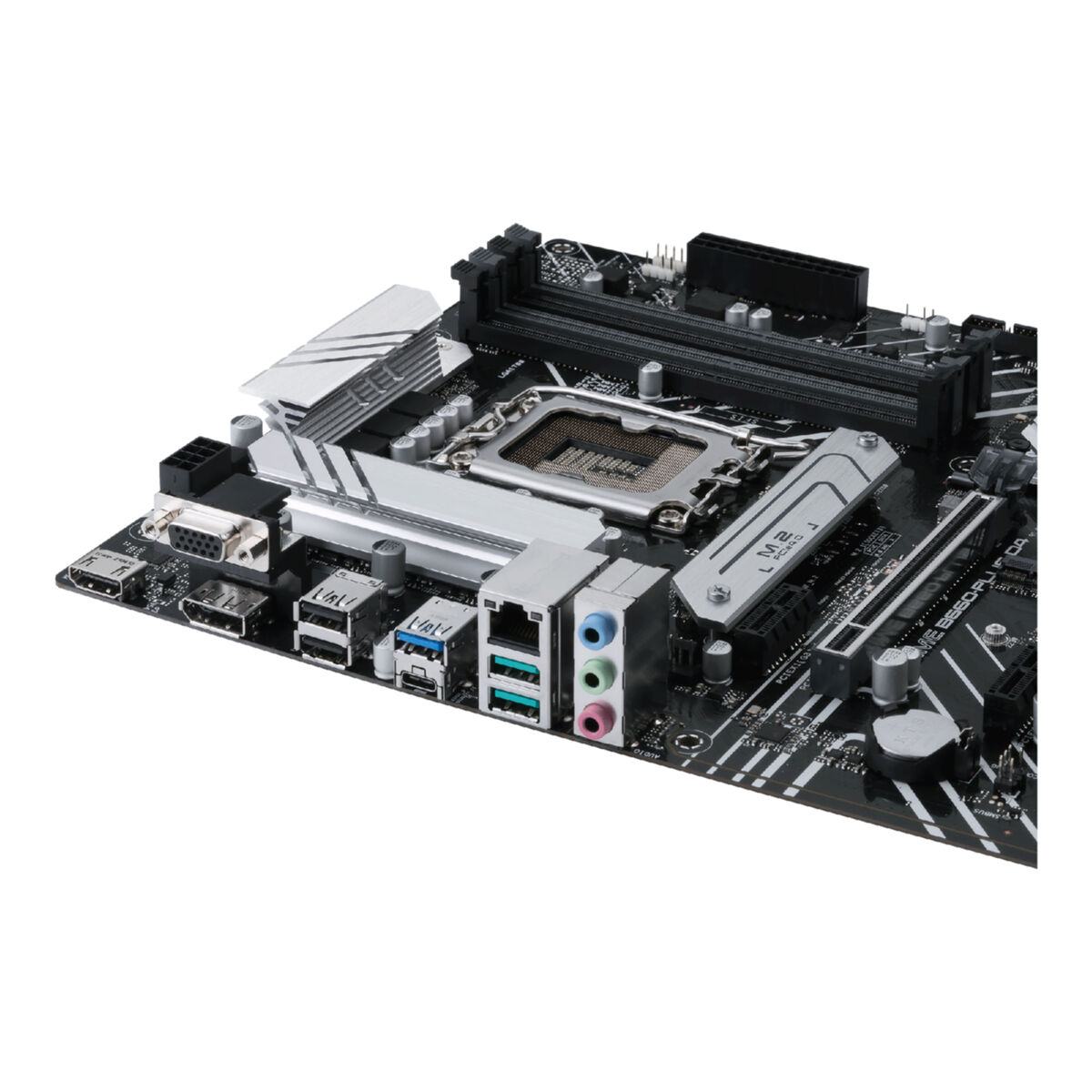

ASUS PRIME B660-Plus D4 (1700) (D)
- Order number: 66589
- Supplier number: 90MB18X0-M1EAY0
- EAN: 4711081523017
- Socket: LGA 1700
- Internal memory max.: 128 GB
- Chipset: Intel B660
- Form factor: ATX
Eigenschaften | |
unterstützte Prozessormodelle | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Sockel | LGA 1700 |
Chipsatz | Intel B660 |
BIOS | UEFI AMI |
Formfaktor | ATX |
geeignet für freien Multiplikator | nein |
RAM | |
Speicher max. | 128 GB |
Memory slots | 4 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR4-SDRAM |
RAM Takt | 2133,2400,2666,2800,2933,3000,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | unbuffered;non-ECC |
Controller in CPU | ja |
Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
USB 3.1 | 2 |
USB 3.0 | 1 |
USB 2.0 | 2 |
USB C | 1 |
VGA | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 2 |
Anschlüsse intern | |
PCIe 4.0 | 1 |
PCIe 3.0 | 2 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 3 |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 2 |
USB-Header USB C | 1 |
Lüfter 4-polig PWM | 3 |
Sound | |
Sound-Chip | 7.1 Kanäle |
Sonstiges | |
LAN | ASUS LANGuard |
RAID SATA | 0, 1, 5, 10 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz |
Gewicht (g) | 891 g |
Breite (cm) | 30.50 |
Tiefe (cm) | 24.40 |
verfügbare Slots | 6 |
