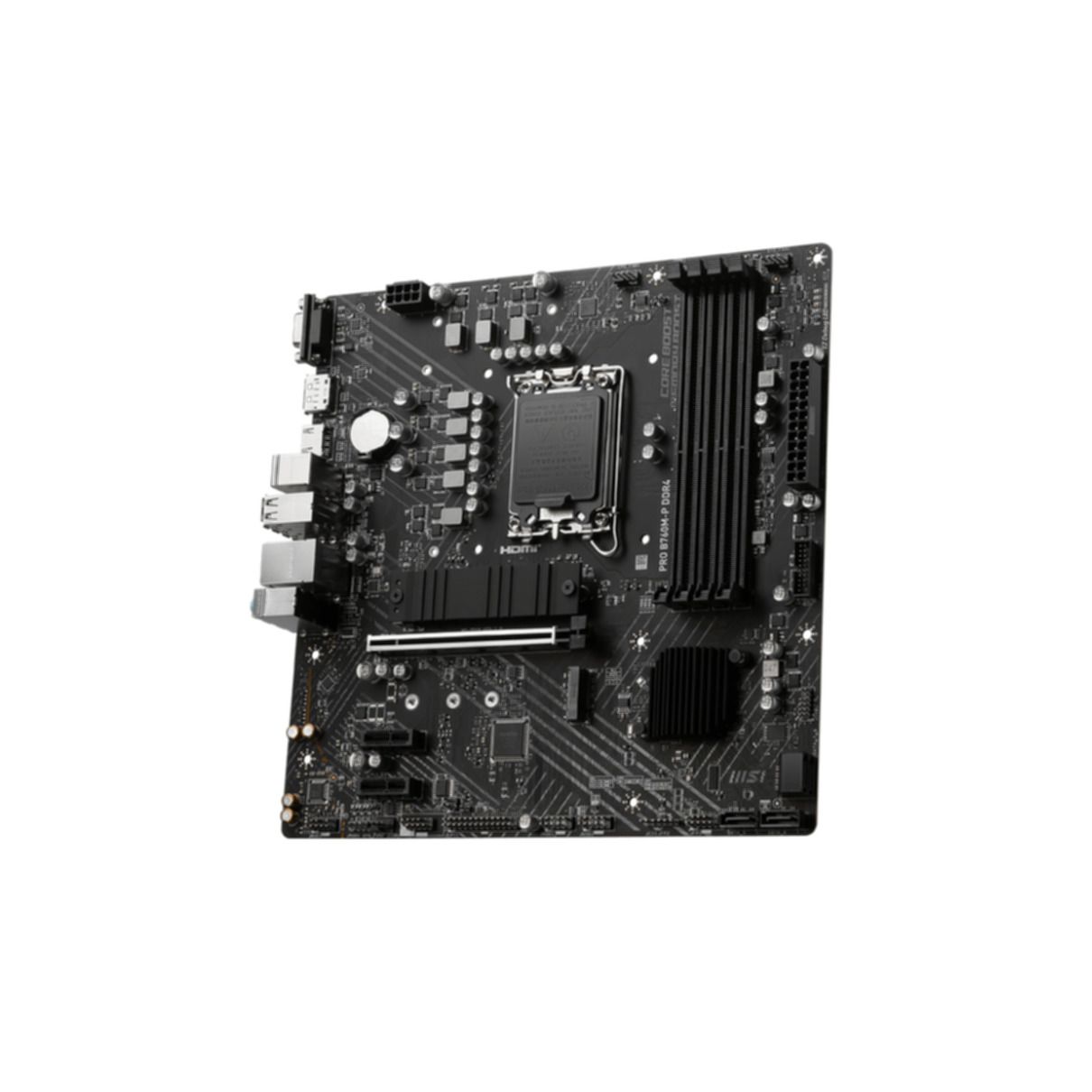

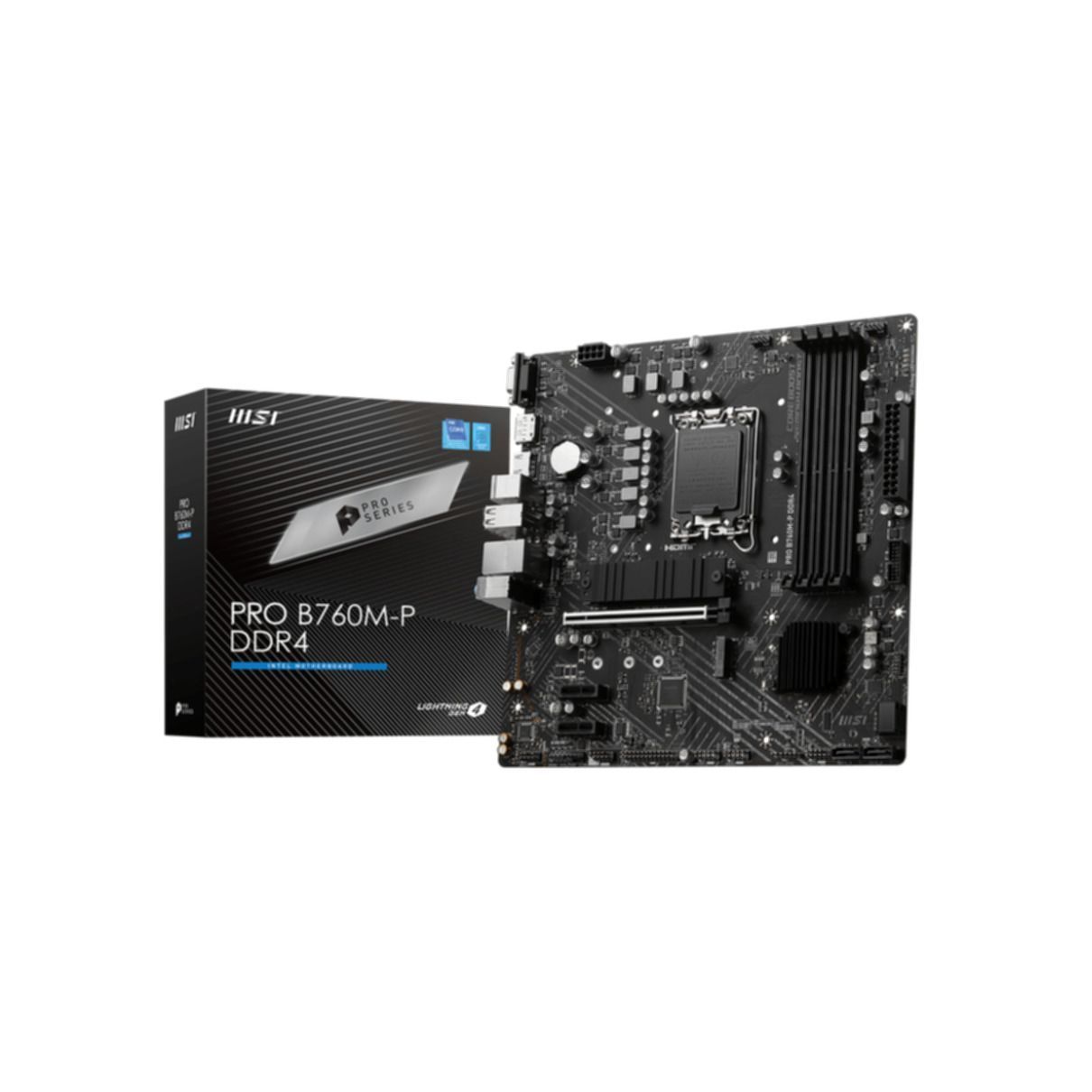

MSI PRO B760M-P DDR4 (1700) (D)
- Order number: 72008
- Supplier number: 7E02-001R
- EAN: 4711377030991
- Socket: LGA 1700
- Internal memory max.: 128 GB
- Chipset: Intel B760
- Form factor: micro ATX
Eigenschaften | |
unterstützte Prozessormodelle | Intel® Celeron®, Intel® Pentium® Gold |
Sockel | LGA 1700 |
Chipsatz | Intel B760 |
BIOS | UEFI AMI |
Formfaktor | micro ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 128 GB |
Memory slots | 4 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR4-SDRAM |
RAM Takt | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | non-ECC;un-buffered |
Controller in CPU | ja |

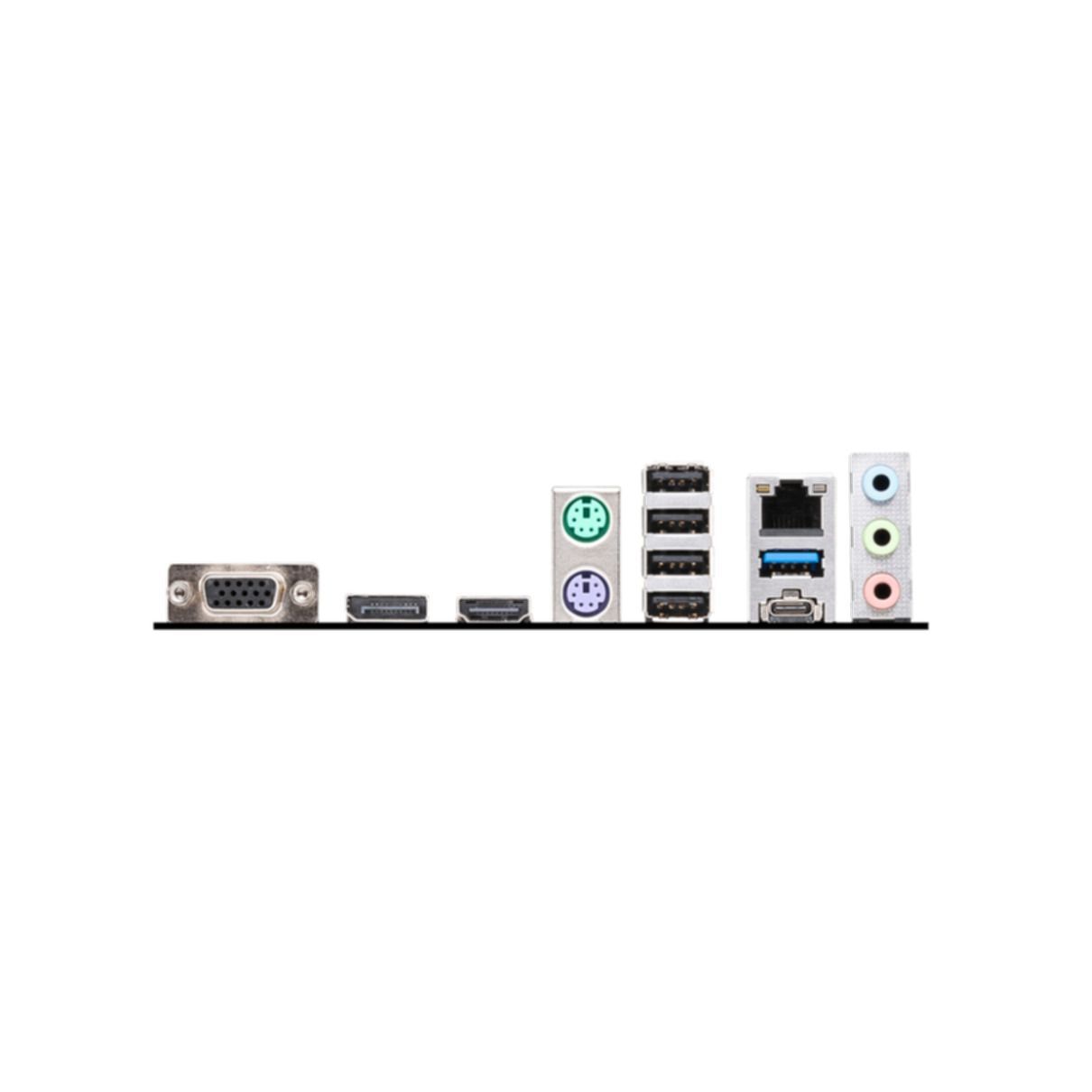

Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 3 |
USB 3.0 | 1 |
USB 2.0 | 4 |
USB C | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 1 |
PCIe 3.0 | 2 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 2 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 4 |
USB-Header USB 3.0 | 2 |
USB-Header USB C | 1 |
Lüfter 4-polig PWM | 7 |
Sound | |
Sound-Chip | 7.1 Kanäle |
Sonstiges | |
LAN | Realtek RTL8125B |
Multi-GPU | ja |
Multi-GPU Modus | 2-Way AMD CrossFire |
RAID SATA | 0, 1, 5, 10 |
RAID M.2 | 0;1 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz |
Gewicht (g) | 1950 |
Breite (cm) | 30.50 |
Tiefe (cm) | 24.40 |
Internal graphic | yes |
verfügbare Slots | 6 |
