Biostar A520MHP (AM4) (D)
- Artikel-Nr.: 86760
- Herstellernr.: A520MHP
- EAN: 4712960688124
- Sockel: Sockel AM4
- RAM-Speicher max.: 64 GB
- Chipsatz: AMD A520
- Formfaktor: micro ATX
1x PCIe x16 3.0, 2x PCIe x1 3.0,
1x M.2 PCIe 3.0 (32Gb/s), 4x SATA III,
HDMI, VGA, Gigabit-LAN
Eigenschaften | |
unterstützte Prozessormodelle | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
Sockel | Sockel AM4 |
Chipsatz | AMD A520 |
BIOS | UEFI |
Formfaktor | micro ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 64 GB |
Speicherplätze | 2 |
Speicher je Speicherplatz | 32GB |
Speicher Art | DDR4-SDRAM |
RAM Takt | 2133,2400,2667,2933,3200,3600,3800,4000,4133,4266,4400 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | non-ECC;un-buffered |
Controller in CPU | ja |

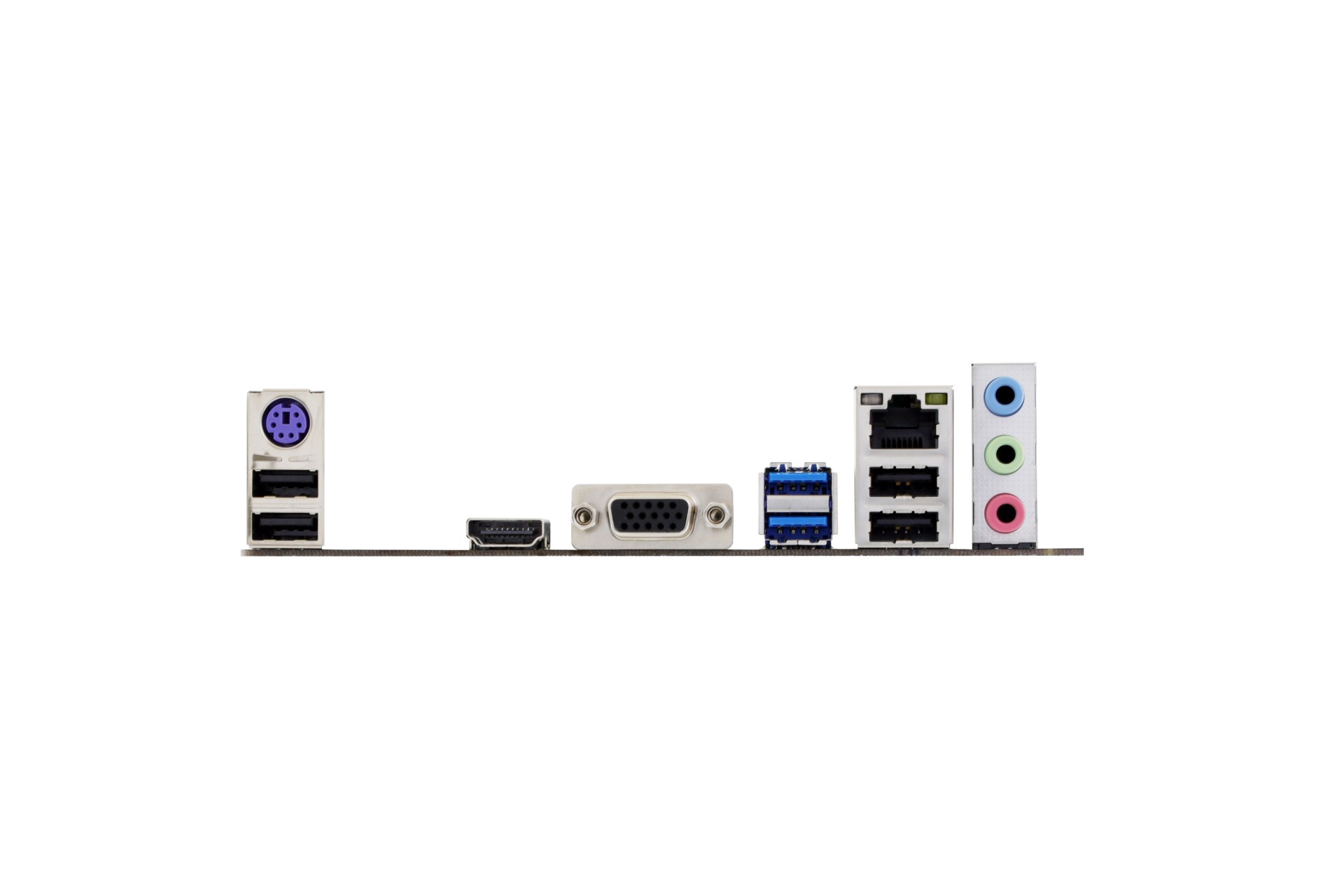

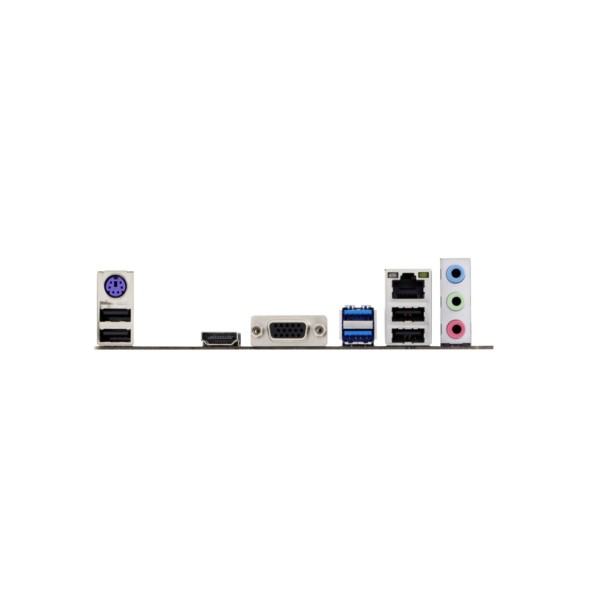

Anschlüsse extern | |
LAN (RJ45) | Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 2 |
USB 3.0 | 2 |
USB 2.0 | 4 |
USB C | 1 |
VGA | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 4.0 | 1 |
PCIe 3.0 | 2 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 1 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 1 |
USB-Header USB C | 6 |
Lüfter 4-polig PWM | 1 |
Sound | |
Sound-Chip | Realtek ALC897 |
Sonstiges | |
LAN | Realtek RTL8111H |
Multi-GPU | ja |
Multi-GPU Modus | Nicht unterstützt |
RAID SATA | 0, 1, 10 |
RAID M.2 | 0;1 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz |
Gewicht (g) | 1950 |
Breite (cm) | 30.50 |
Tiefe (cm) | 24.40 |
interne Grafik | ja |
verfügbare Slots | 6 |
