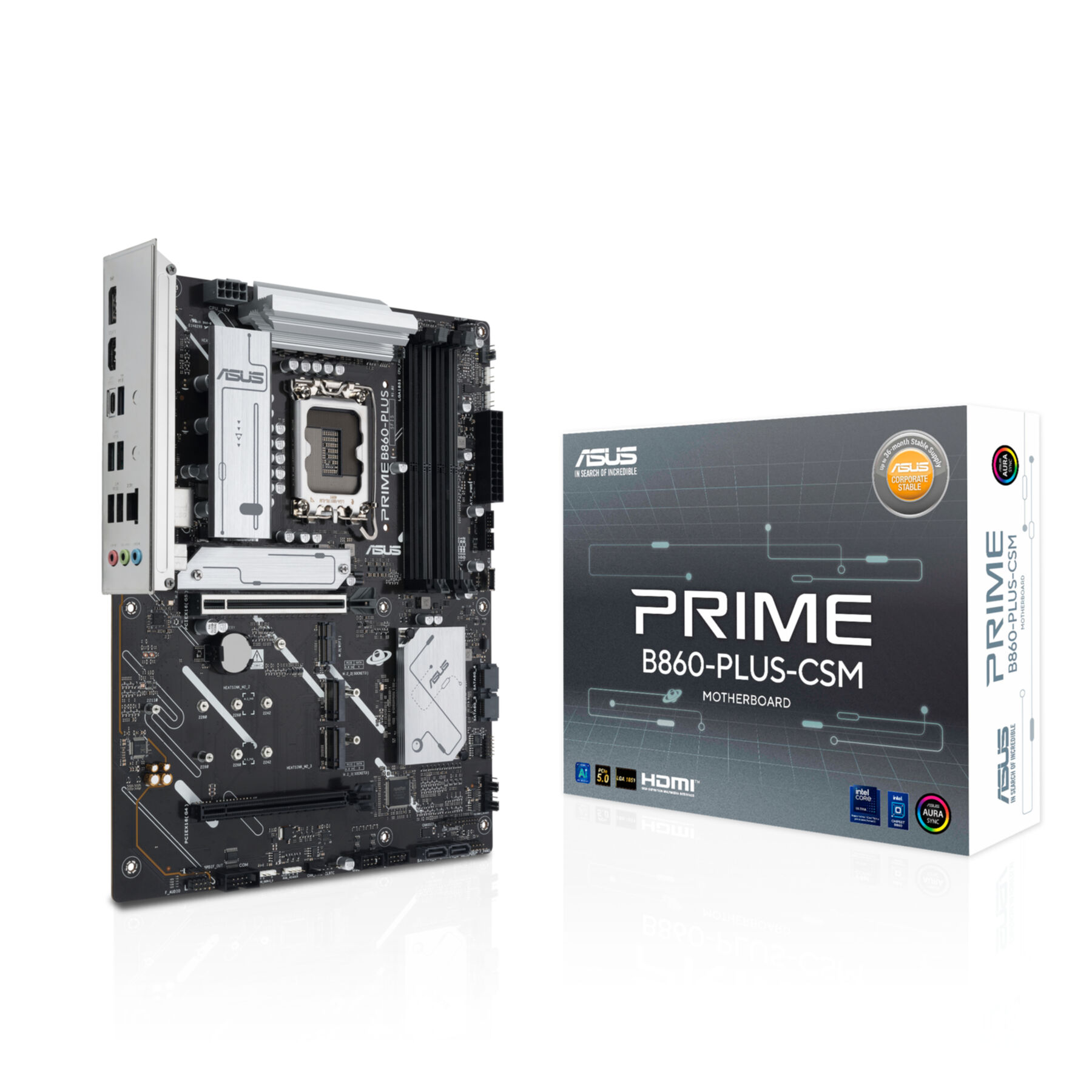

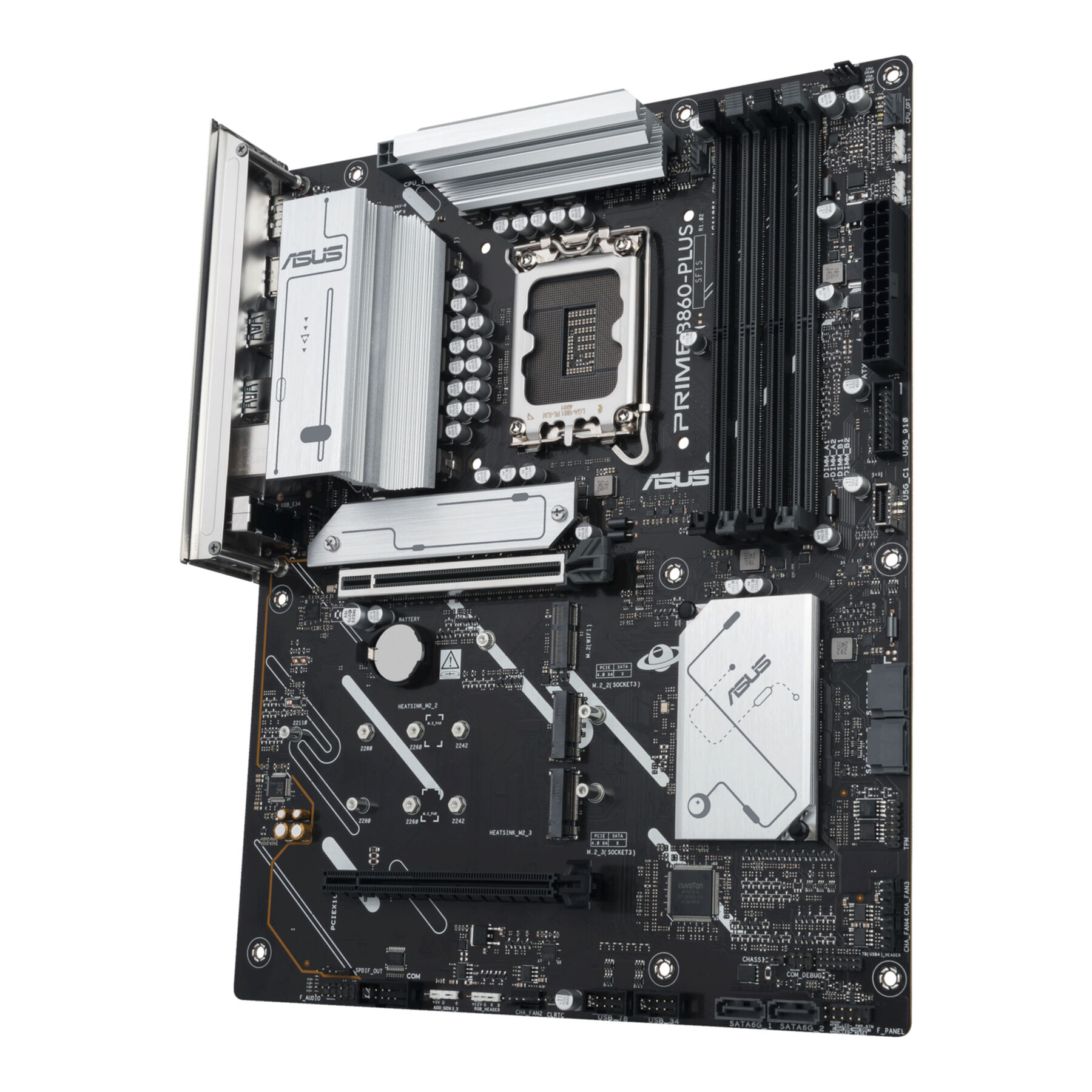

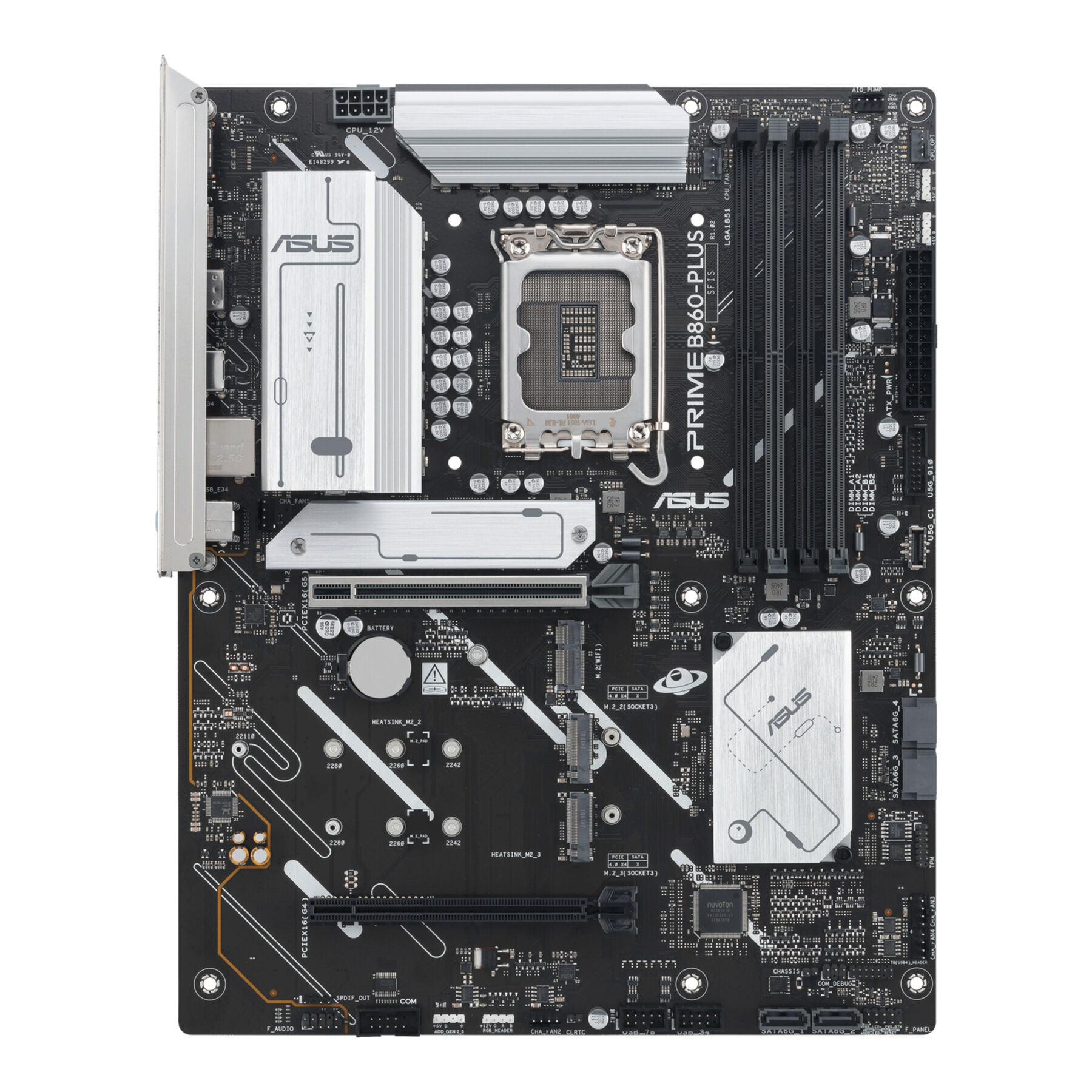

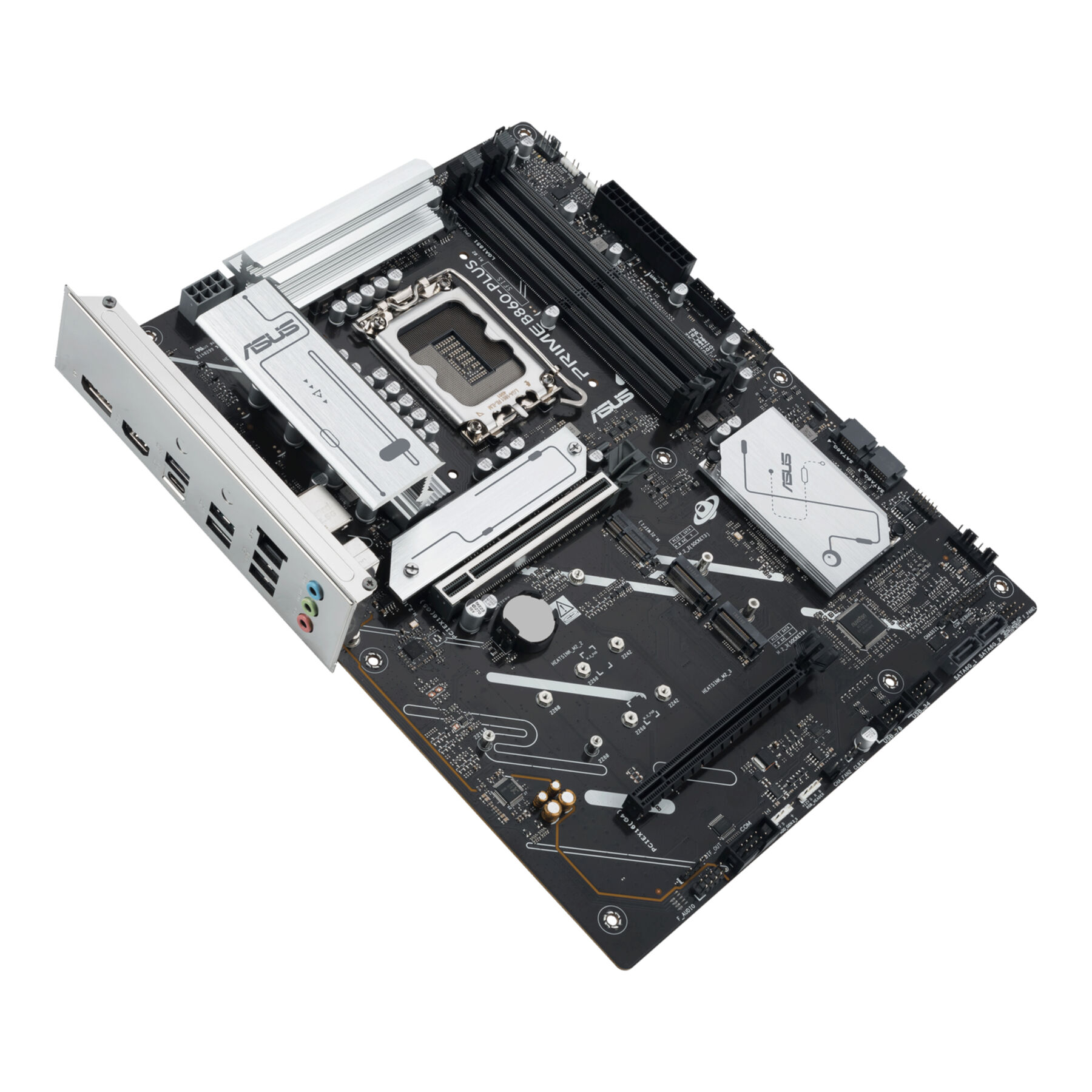

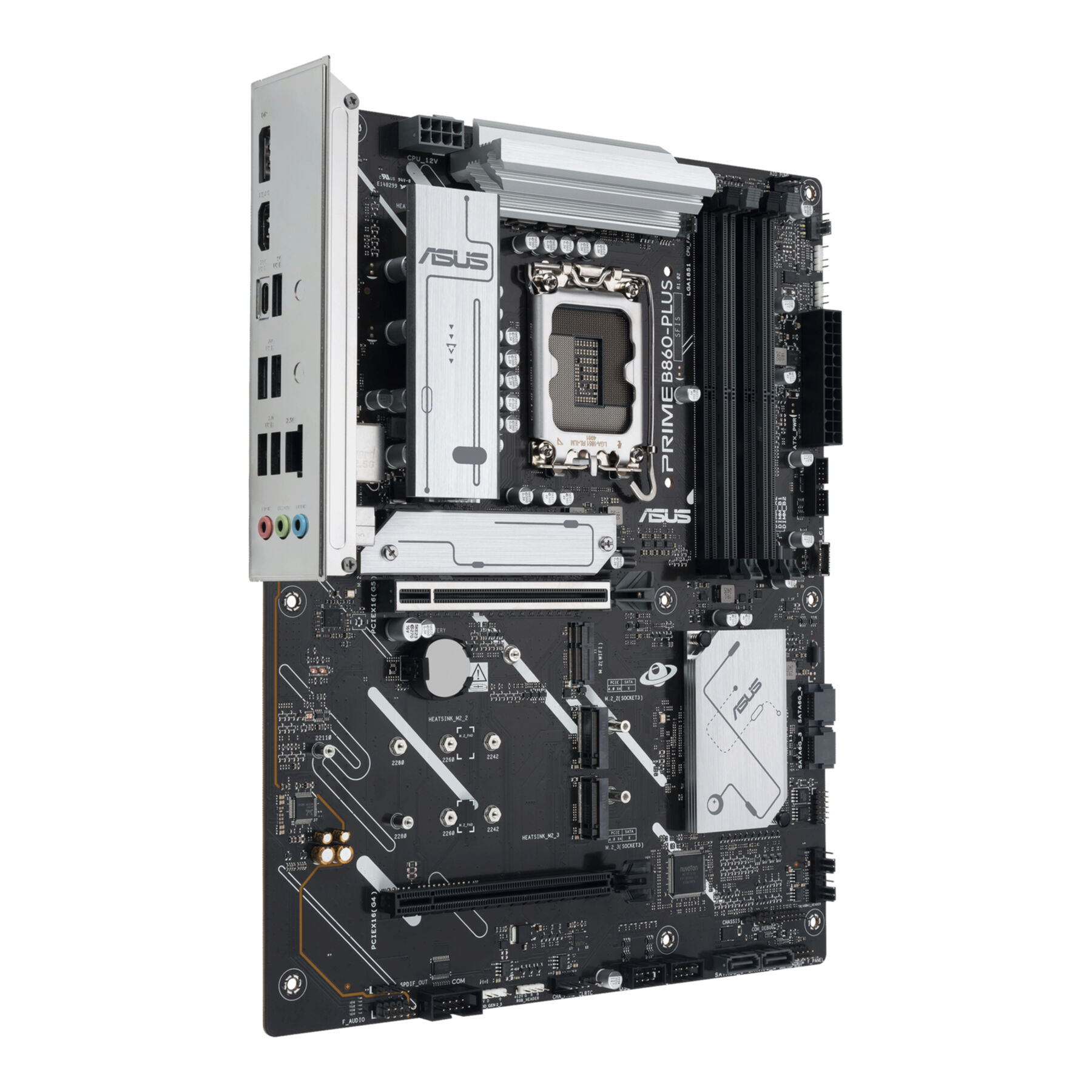

ASUS PRIME B860-PLUS-CSM (1851) (D)
- Artikel-Nr.: 87744
- Herstellernr.: 90MB1KA0-M0EAYC
- EAN: 4711387814857
- Sockel: LGA 1851 (Socket V1)
- RAM-Speicher max.: 256 GB
- Chipsatz: Intel B860
- Formfaktor: ATX
Eigenschaften | |
unterstützte Prozessormodelle | Intel Core Ultra (Series 2) |
Sockel | LGA 1851 (Socket V1) |
Chipsatz | Intel B860 |
BIOS | UEFI AMI |
Formfaktor | ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 256 GB |
Speicherplätze | 4 |
Speicher je Speicherplatz | 32GB |
Speicher Art | DDR5-SDRAM |
RAM Takt | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | non-ECC;un-buffered |
Controller in CPU | ja |
Anschlüsse extern | |
LAN (RJ45) | 2.5 Gigabit Ethernet |
USB 3.1 | 2 |
USB 3.0 | 1 |
USB 2.0 | 2 |
USB C | 3 |
VGA | 0 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 4 |
S/PDIF-Out (optisch) | 1 |
Anschlüsse intern | |
PCIe 5.0 | 2x PCIe x16 |
PCIe 3.0 | 1x PCIe x1 |
Mainbord Strom | 24pin |
CPU Strom | 2x8pin; 1x 6-Pin |
SATA 3 | 4 |
M.2 | 3 |
M.2 Länge max. | 110mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 2 |
USB-Header USB C | 0 |
Lüfter 4-polig PWM | 4 |
Sound | |
Sound-Chip | 7.1 Kanäle |
Sonstiges | |
LAN | 1x Marvell 10GbE; 1x Intel I225-V 2.5GbE |
Multi-GPU | ja |
Multi-GPU Modus | Nicht unterstützt |
RAID SATA | 0, 1, 5, 10 |
RAID M.2 | 0;1;5 |
Beleuchtungsfarbe | RGB |
Farbe | schwarz |
Gewicht (g) | 896 g |
Breite (cm) | 30.50 |
Tiefe (cm) | 27.70 |
interne Grafik | ja |
verfügbare Slots | 6 |
